The Shop Truck.

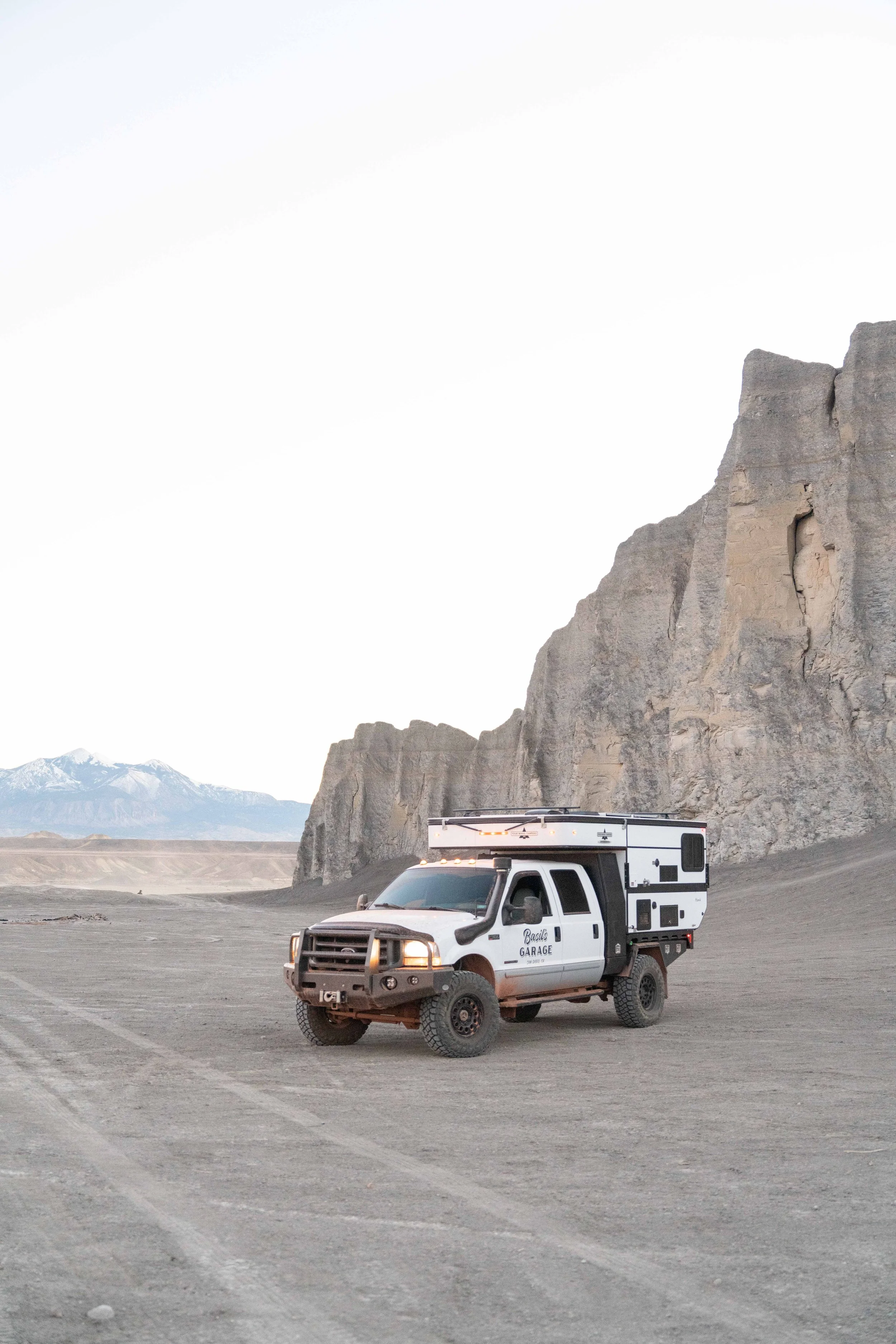

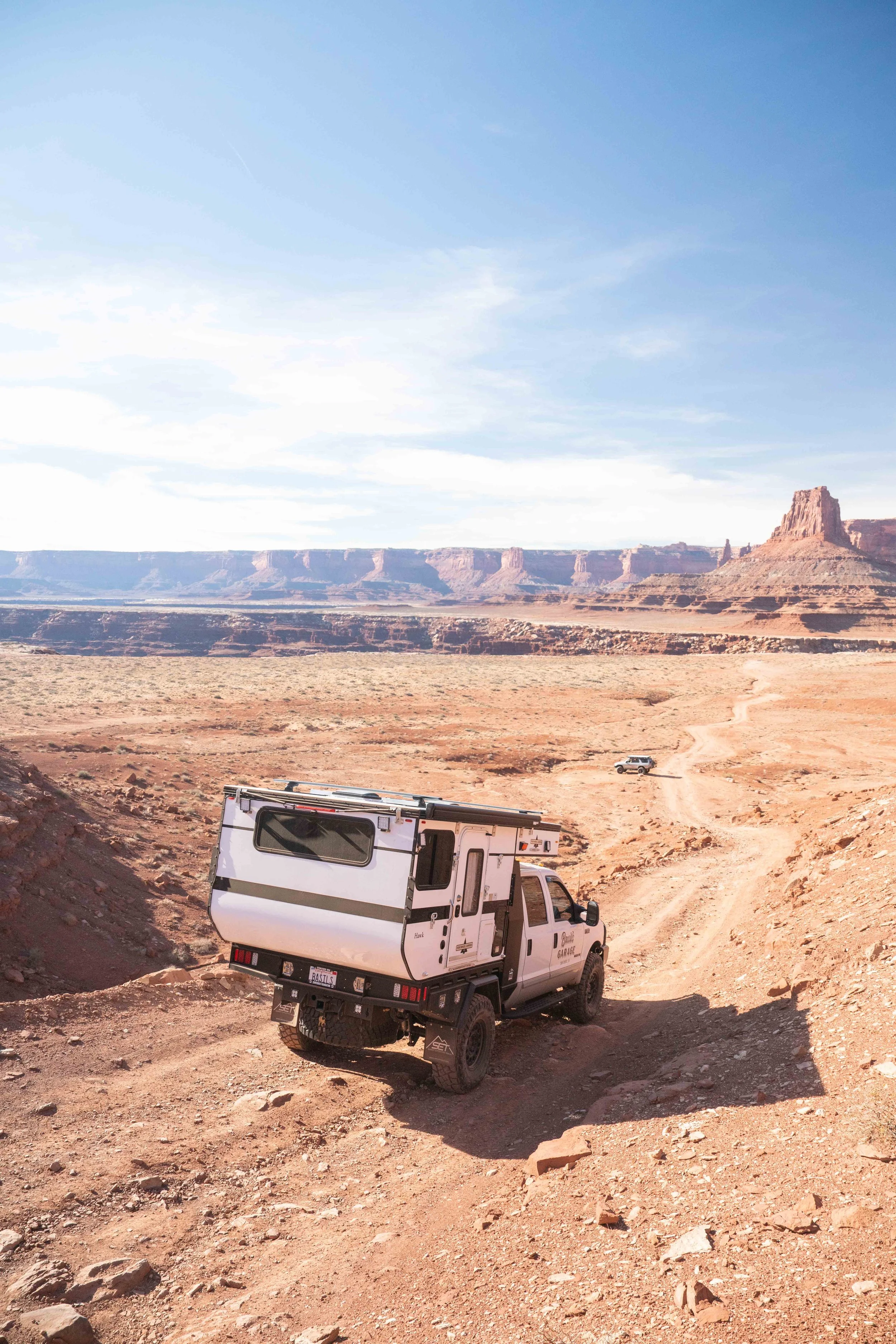

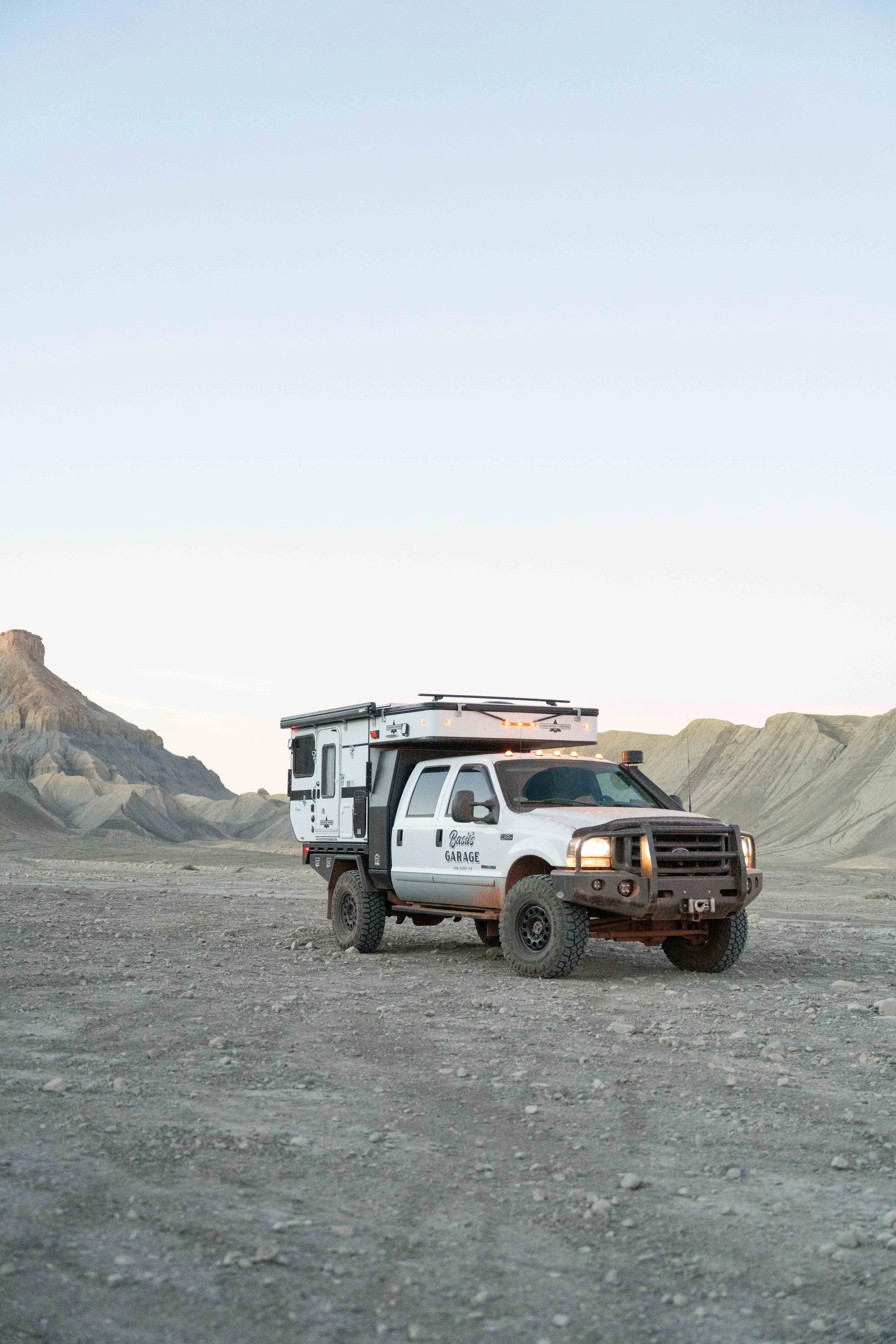

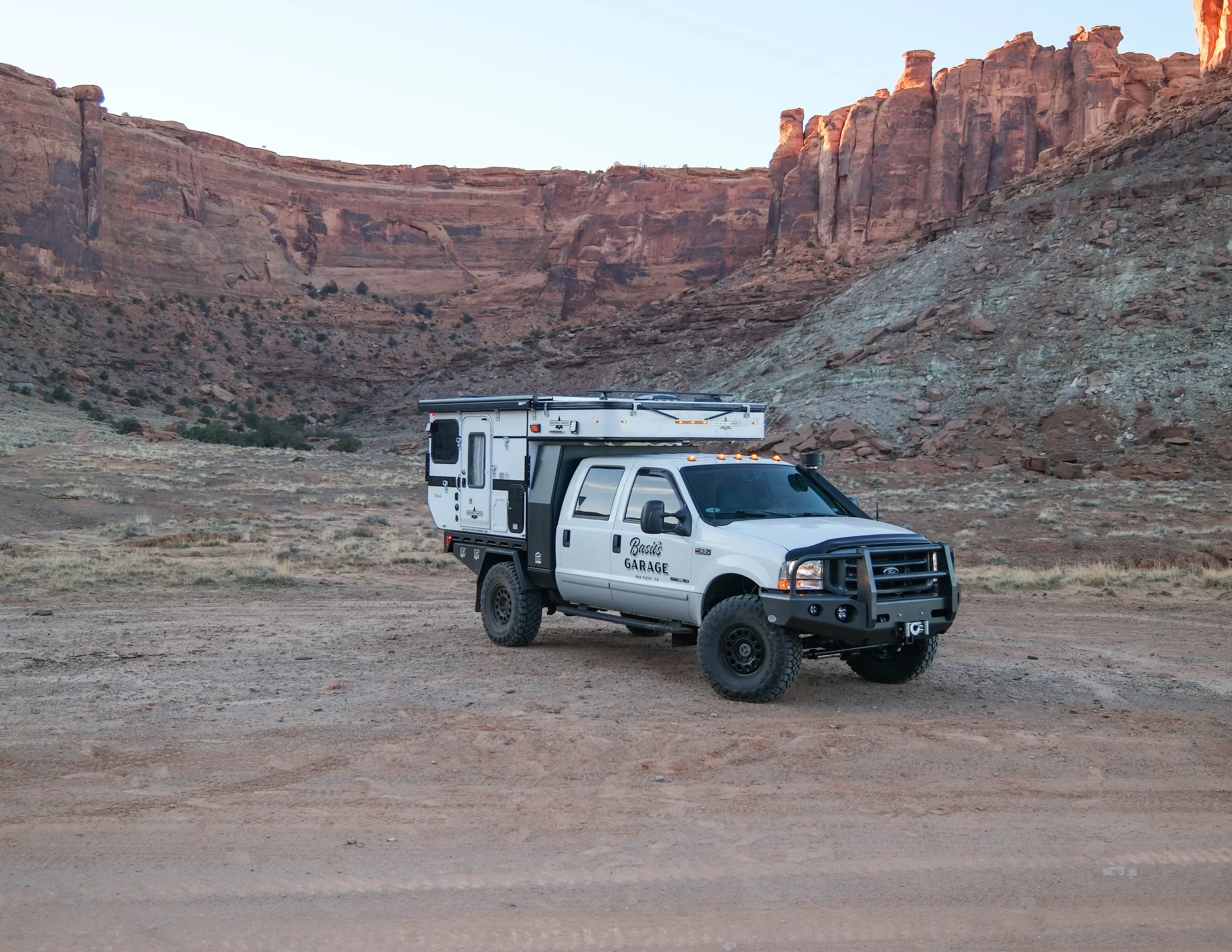

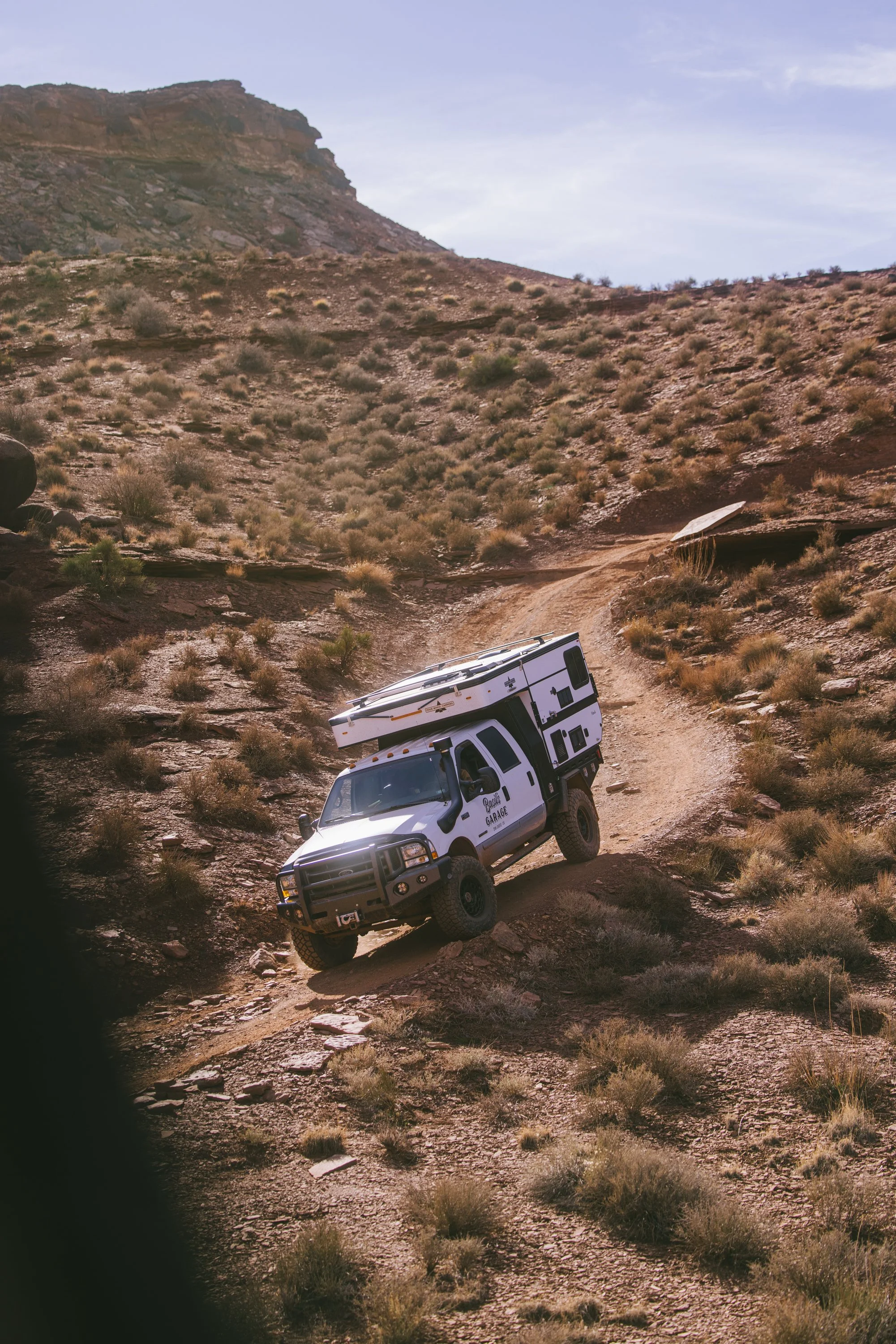

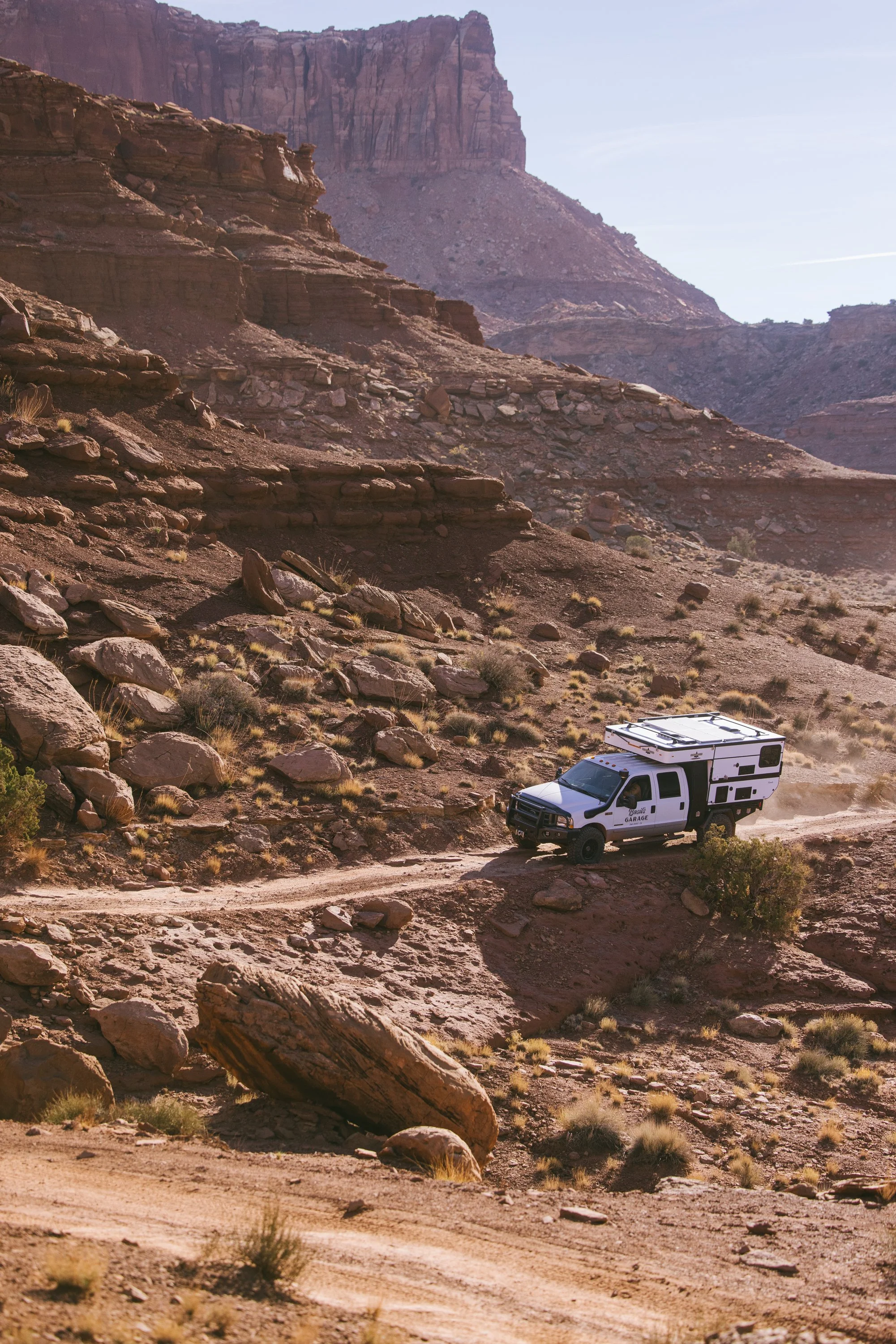

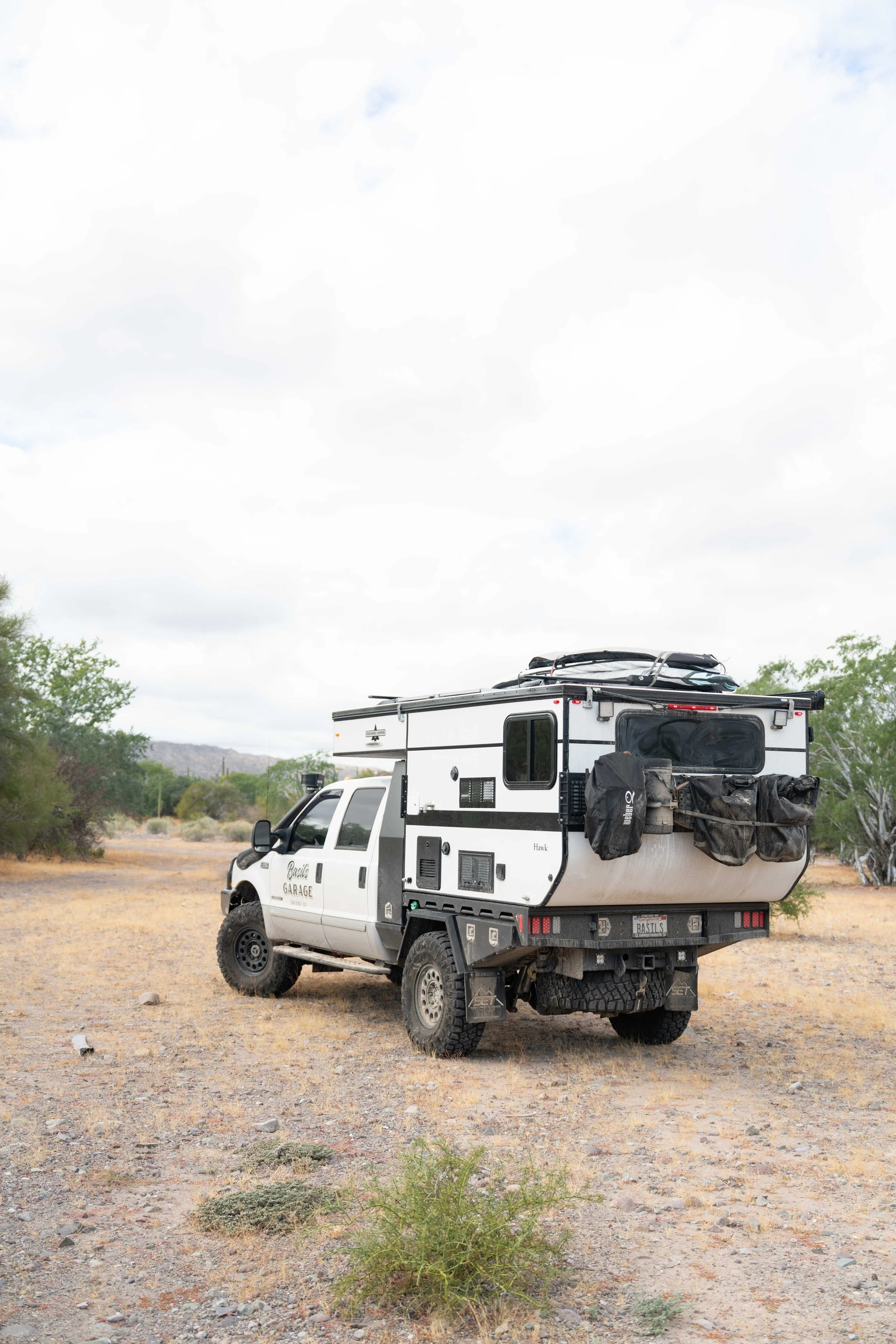

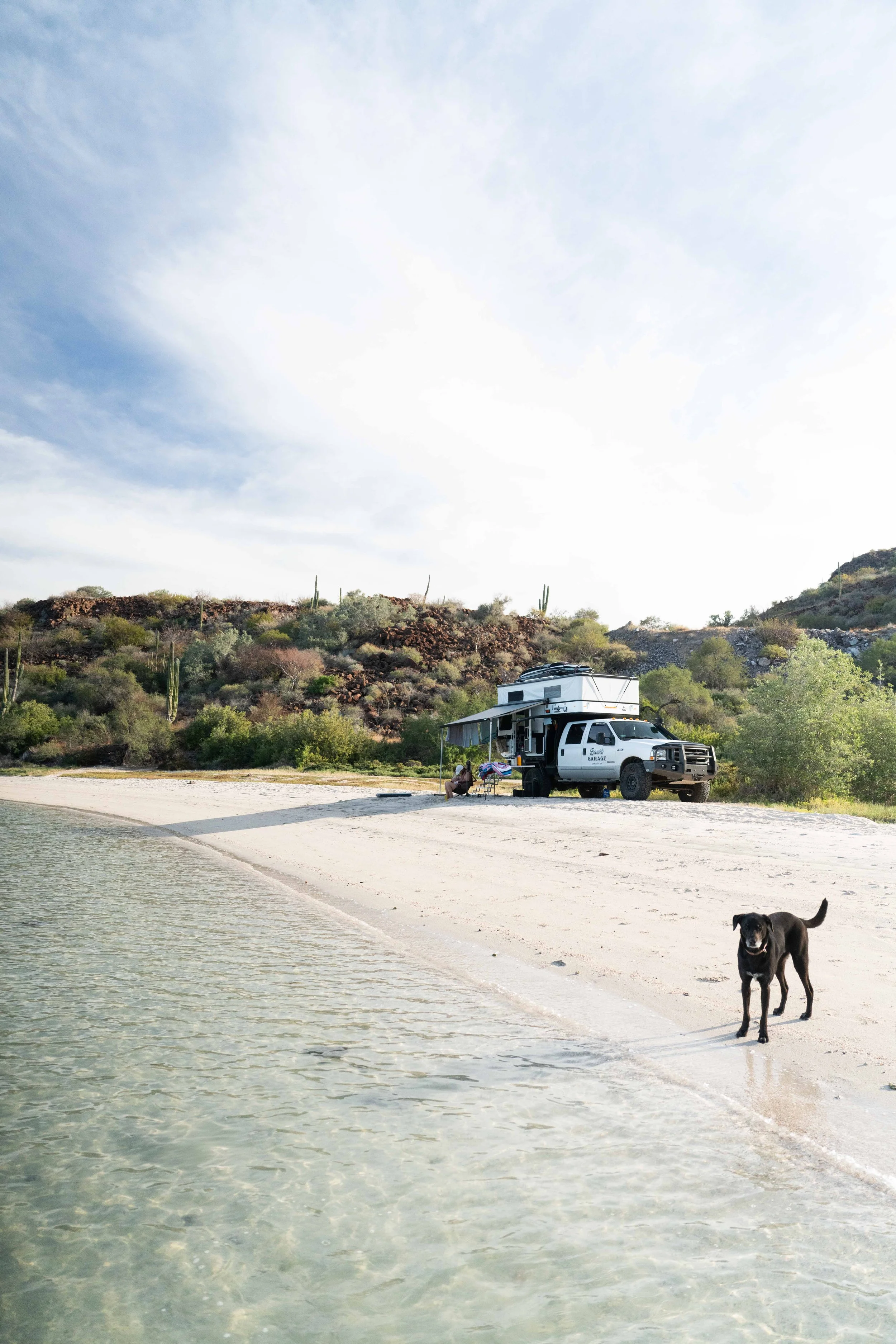

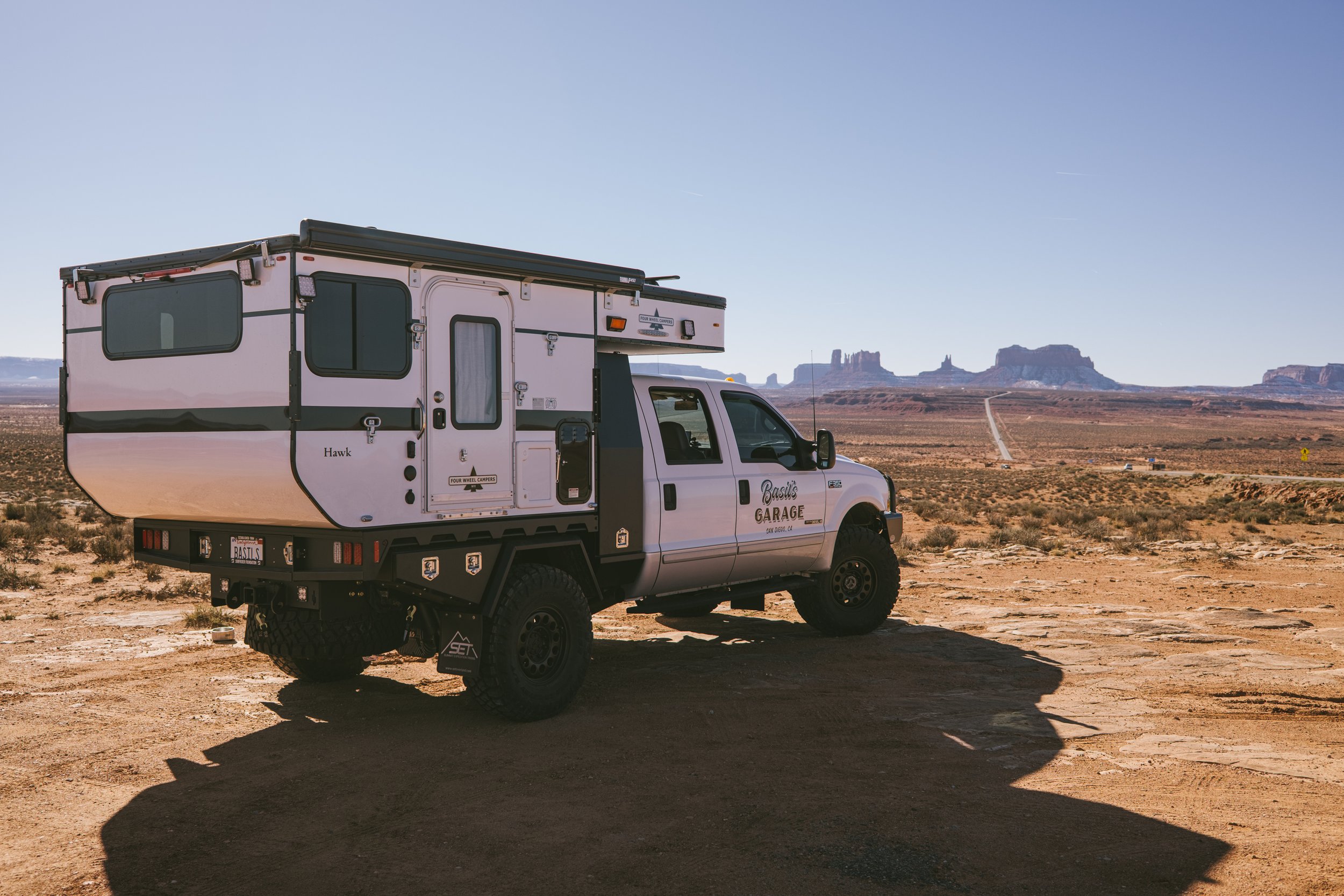

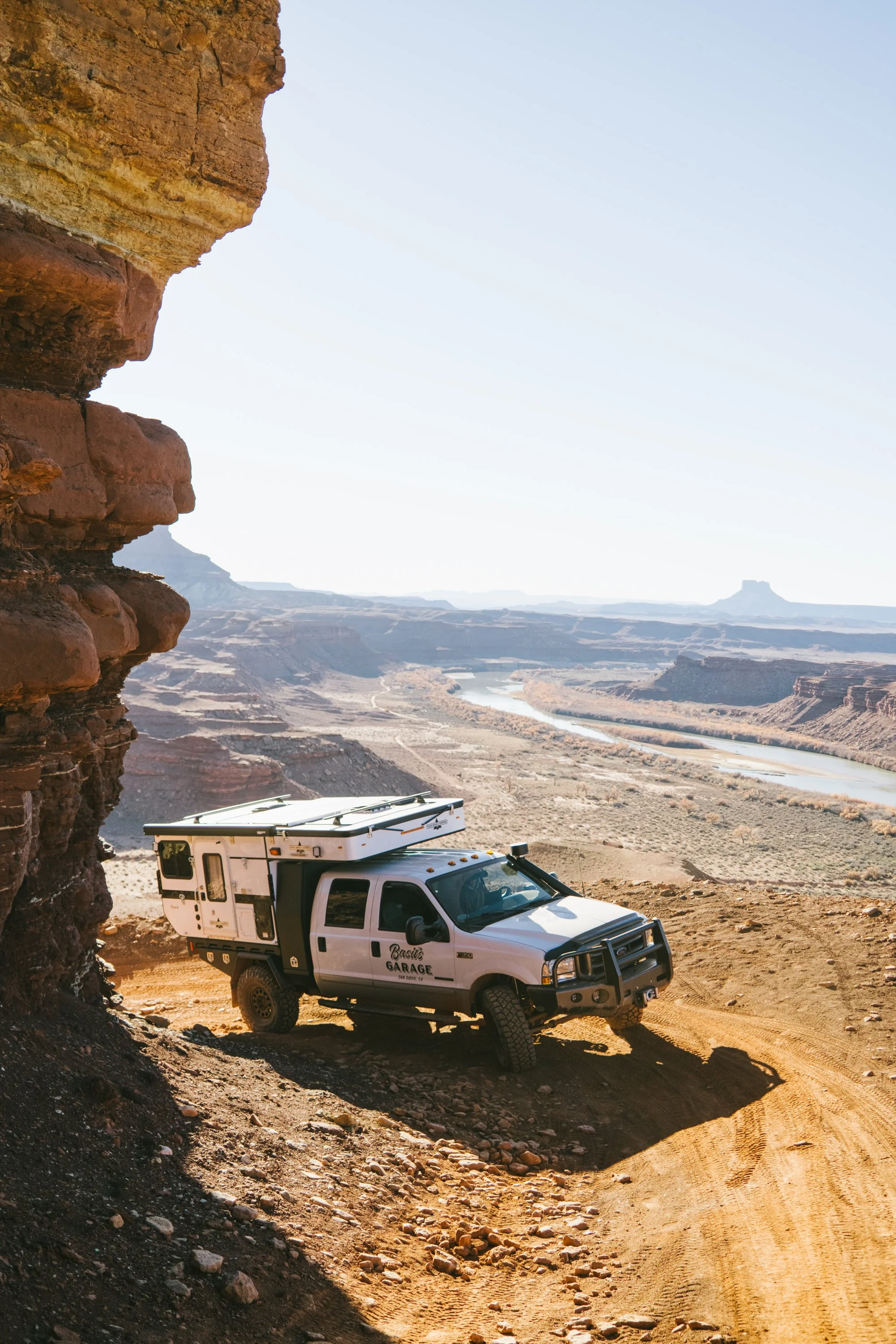

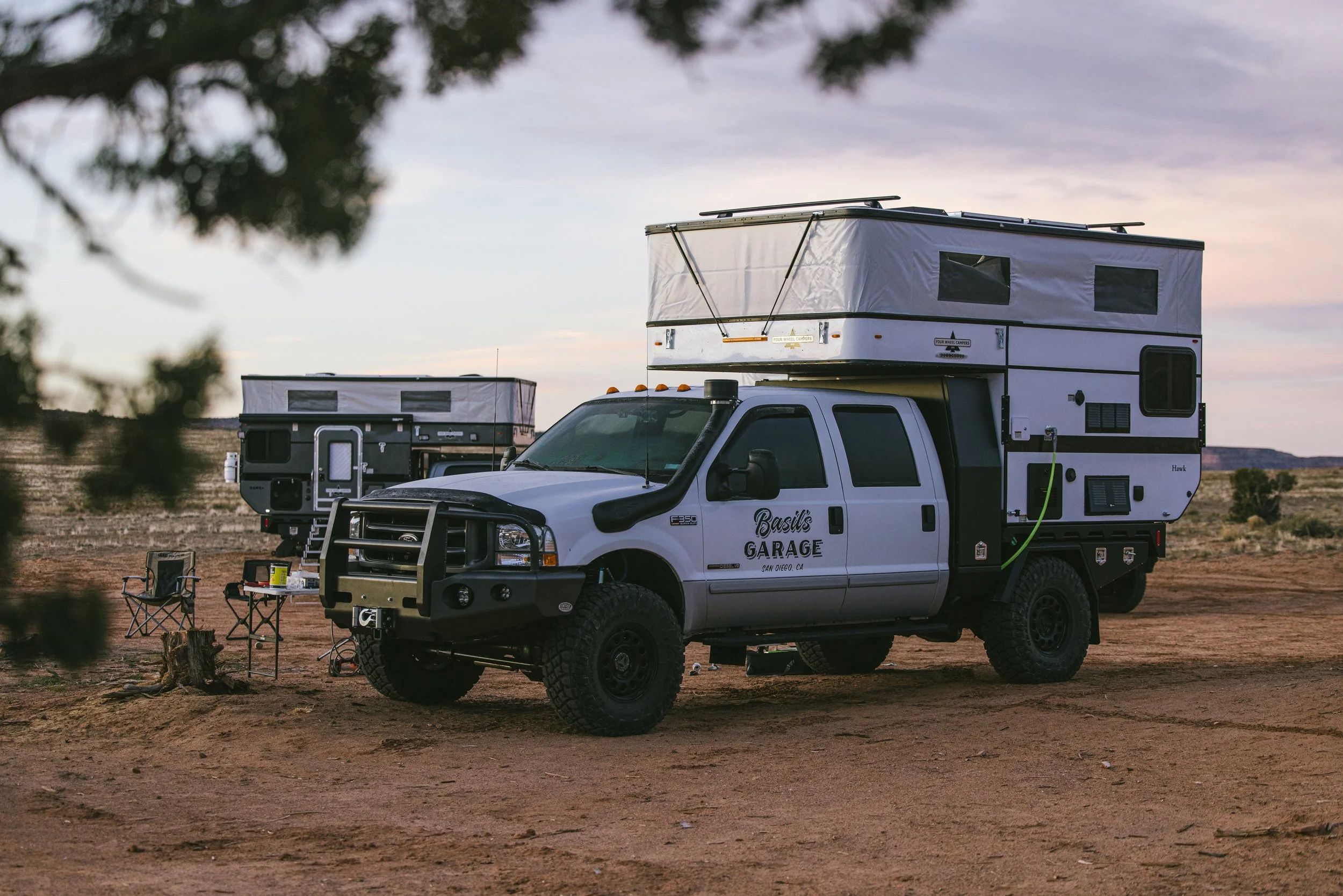

2002 Ford F-350 7.3 + FWC Hawk.
Daily driver and family travel rig. Built for surf trips, Baja, and weeks at a time off-grid.
Why an old diesel?
Basil here. This one's a personal favorite of mine. I've got some serious love for the 7.3L diesel after owning and living in one for a few years a while back, so when it was time to build a new rig to haul the family, I went straight to the dumb old diesel I loved and built my dream rig.
As you can tell, I didn't cut any corners on this build. I wanted it to be reliable, have plenty of power to tow, be comfortable on and off-road, and able to comfortably haul the family anywhere I wanted to go. I wanted the older pre-emissions diesel for simplicity’s sake. I know it won’t ever make the same amount of power that a new truck makes, but it should never leave me stranded or have electronic issues in the middle of nowhere.
The truck was purchased in 2023 from a customer who had it in his family since new. It was in great shape, prime to start a build on. When I bought it I had plans to keep things simple — but as many of you know, things snowball quick around here, and I went nuts on it.
Last time I owned a 7.3, I didn't have the financial capability, shop space, or skillset to build what I wanted to. So this time around I took FULL advantage of where I was at in life and built a dream vehicle. I picked the best of the best for parts and got to work.
The build has been evolving over the last few years — from hauling a slide-in camper to where it is now with the flatbed FWC. The current state is about where it's going to stay, and it's honestly perfect. It does everything I want and more — plus there's not much more I can do to it, hah!

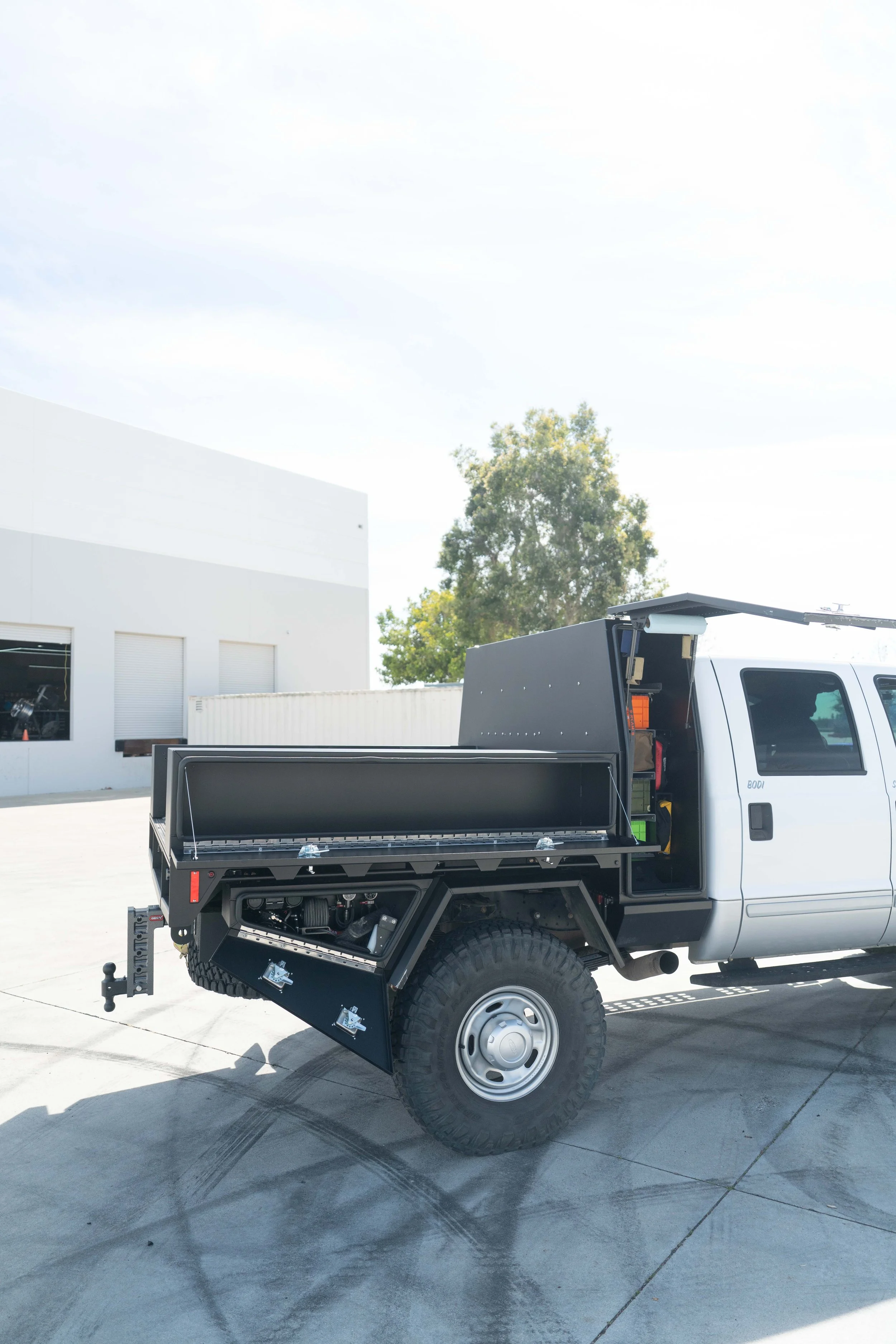

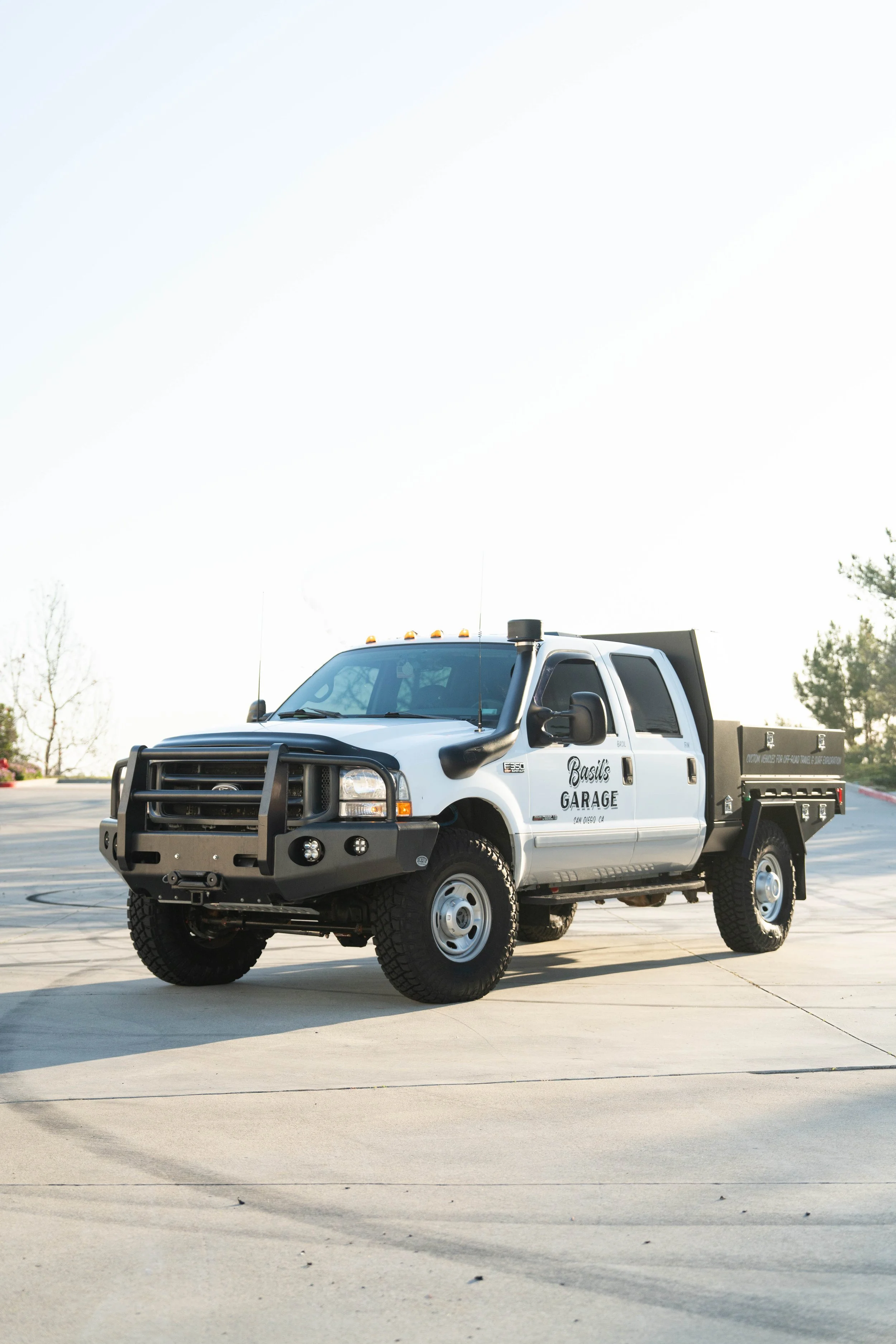

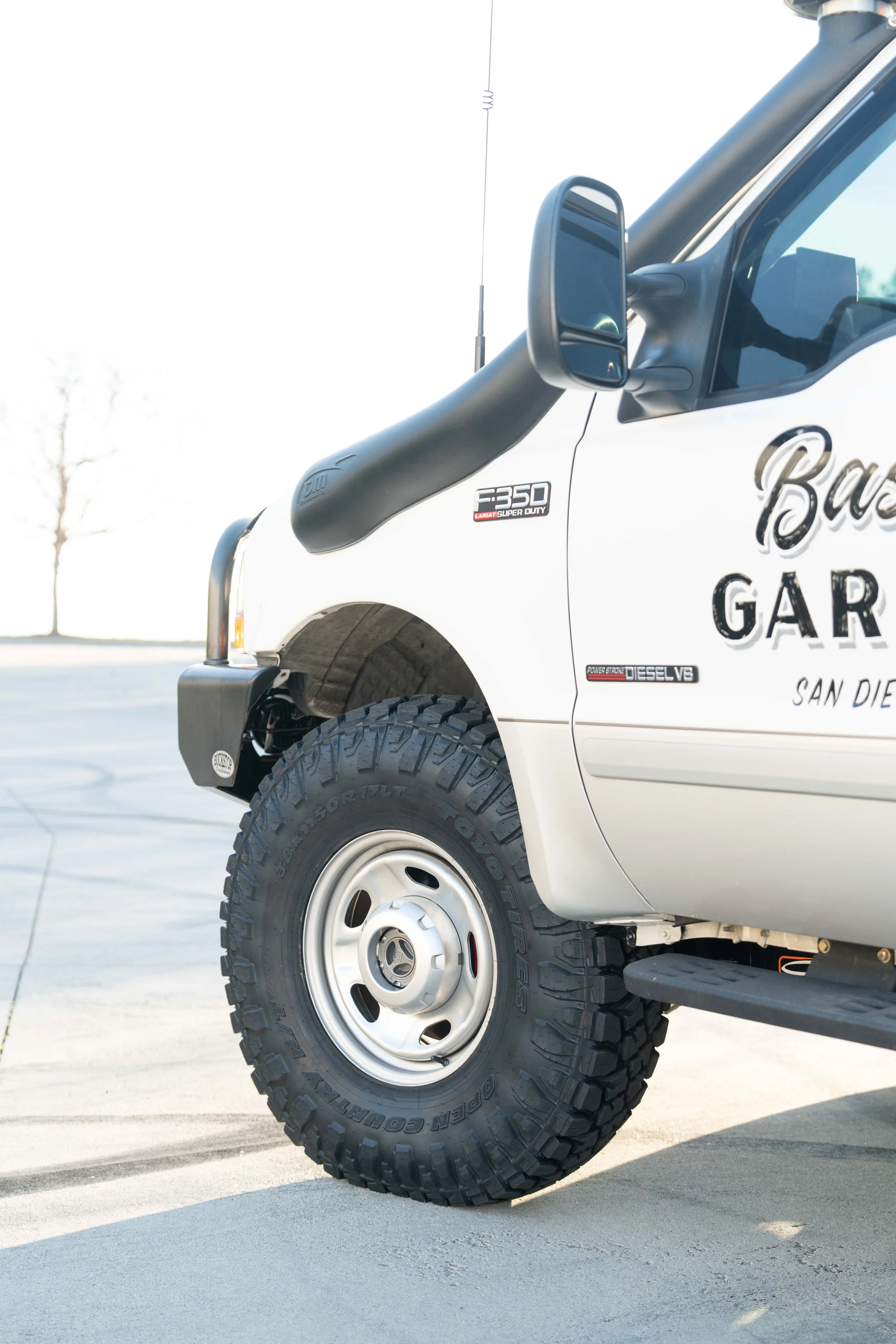

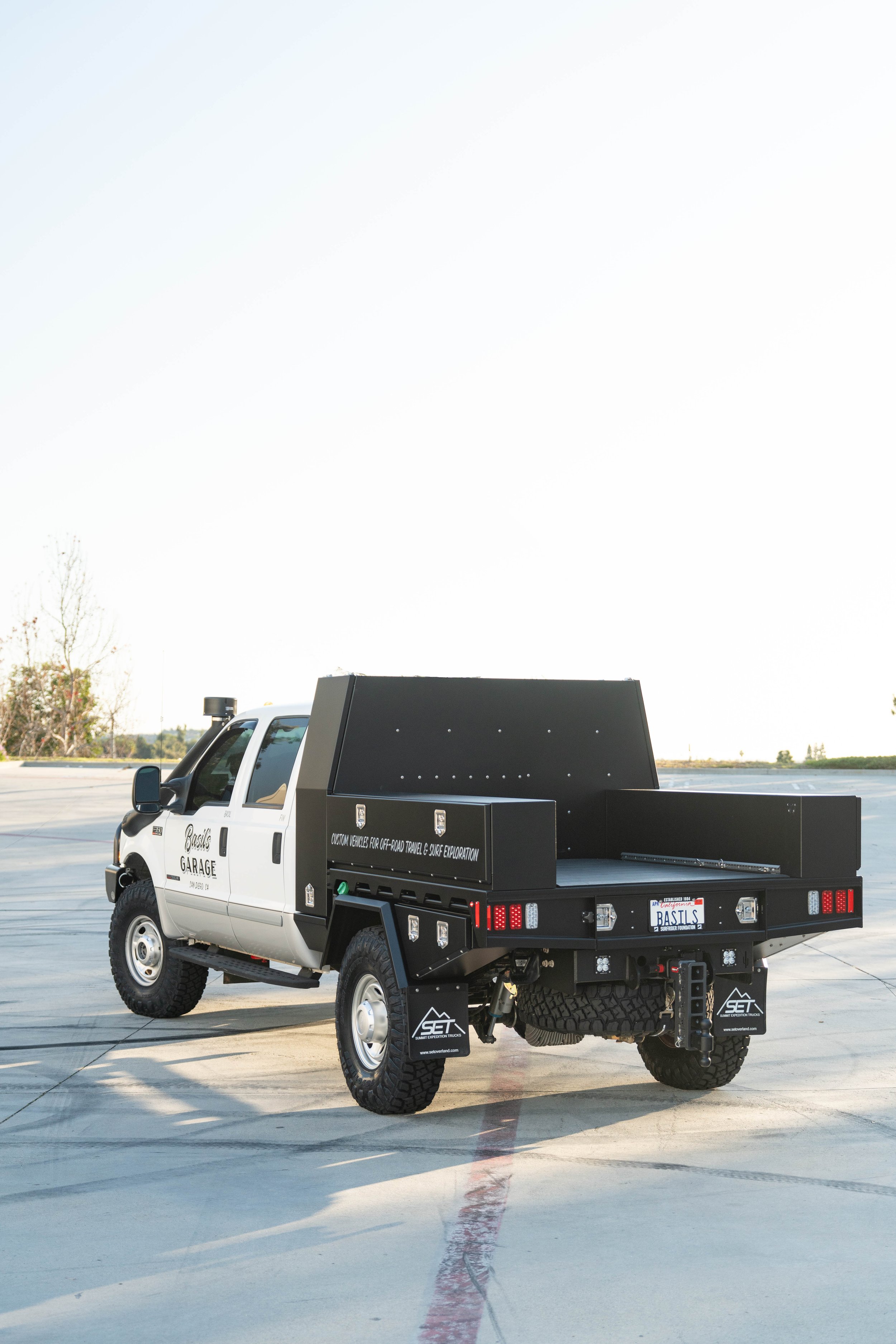

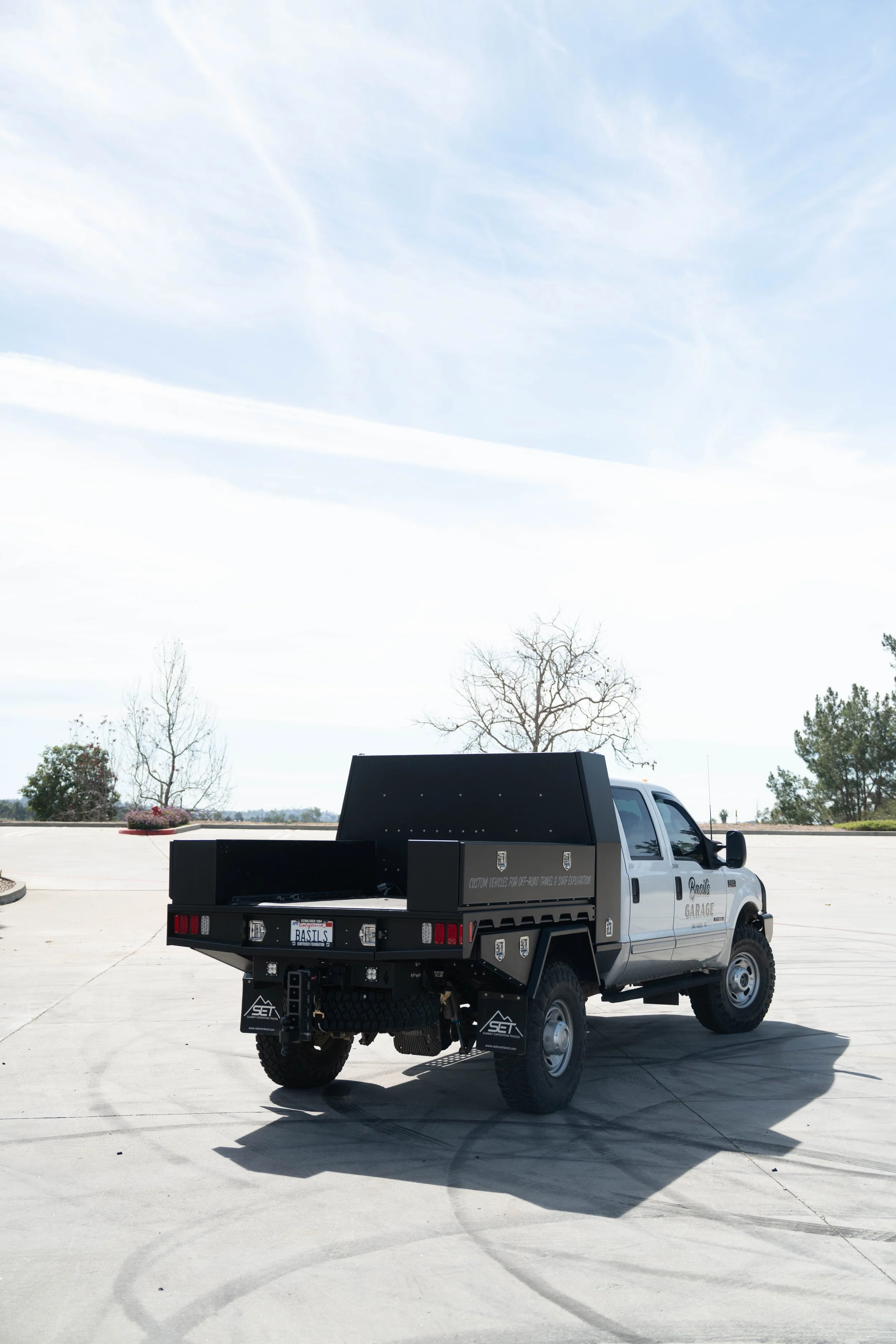

Basil’s Rig in “Work truck” mode - Camper removed how it’s driven around daily when not camping
Build Sheet
The complete build — vehicle, suspension, armor, lighting, camper, electrical, and interior.
The Vehicle
- 2002 Ford F-350 Super Duty · 4-door, shortbed, 4WD
- 7.3L Power Stroke turbo diesel · 4R100 automatic trans
Engine
- KC Stage 1 turbo
- Non-EPV pedestal
- Riffraf intake · fuel bowl · up pipes · high-flow fuel banjo bolts · AIC delete · braided fuel feed lines · fuel rail crossover · heater hose upper nipple · overboost eliminator · high-flow fuel pickup
- Banks intake
- Mishimoto radiator
- Ford radiator tank & hoses · CPS · IPR · ICP sensors (all new) · water pump
- Magnaflow 4" turbo-back exhaust
- Sentinel exhaust brake
- Edge CTS3 monitor with EGT, water temp, and boost
- CNC Fab stage 1 HPOP · charge air boot kit · HPOP line kit with HPX
- Driven Diesel fuel filter system · pre- and post-pump filters
- Fuel bowl rebuild · oil cooler rebuild · dipstick repair kit
Driveline
- Brian's Truck Shop built transmission
- Motorcraft flex plate
- Mishimoto 6.0 trans cooler
- Rebuilt driveshafts
- 4.88 gears
- ARB air lockers — front and rear
- Welded front & rear axle tubes to center section

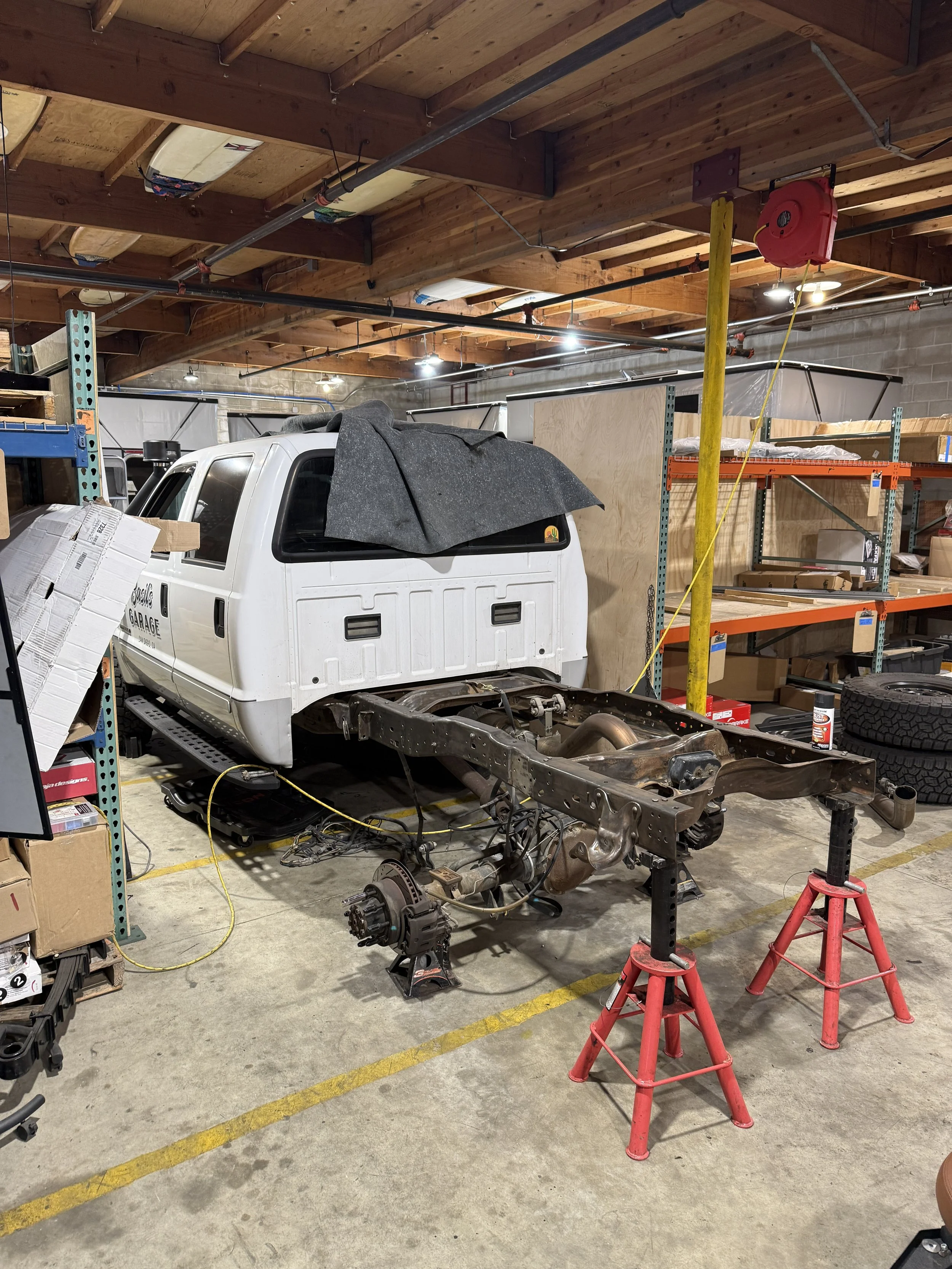

- 05+ axle conversion · front axle from a 2006 F-350
- Dana 80 DRW rear axle converted to SRW with hubs
- Dynatrac ball joints
- PowerStop brakes
- Warn front hubs

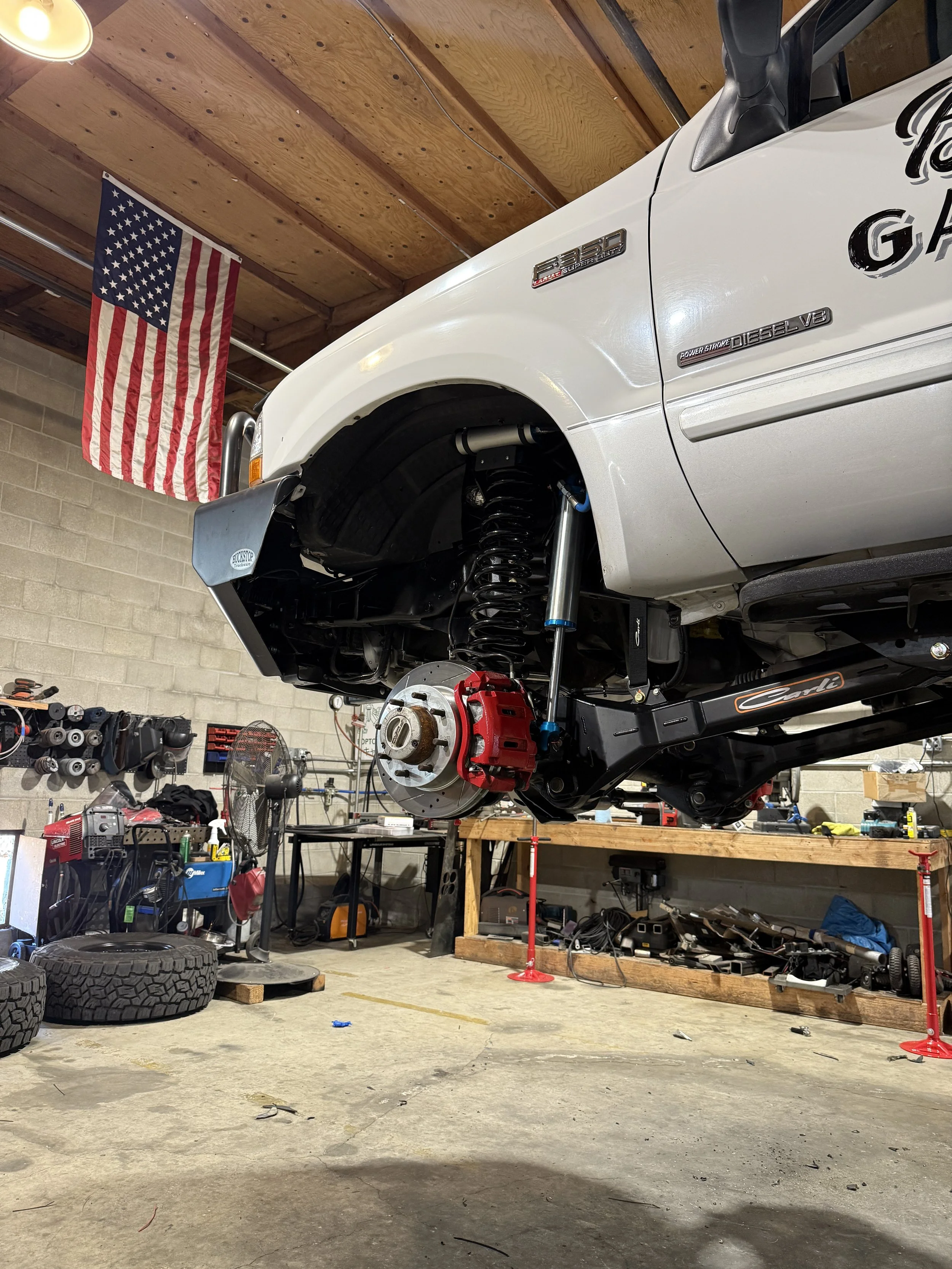

Suspension
- 05+ axle conversion · front axle from a 2006 F-350
- PMF track bar mount · radius arm mounts · 08+ rear leaf hanger conversion
- Carli Dominator suspension system

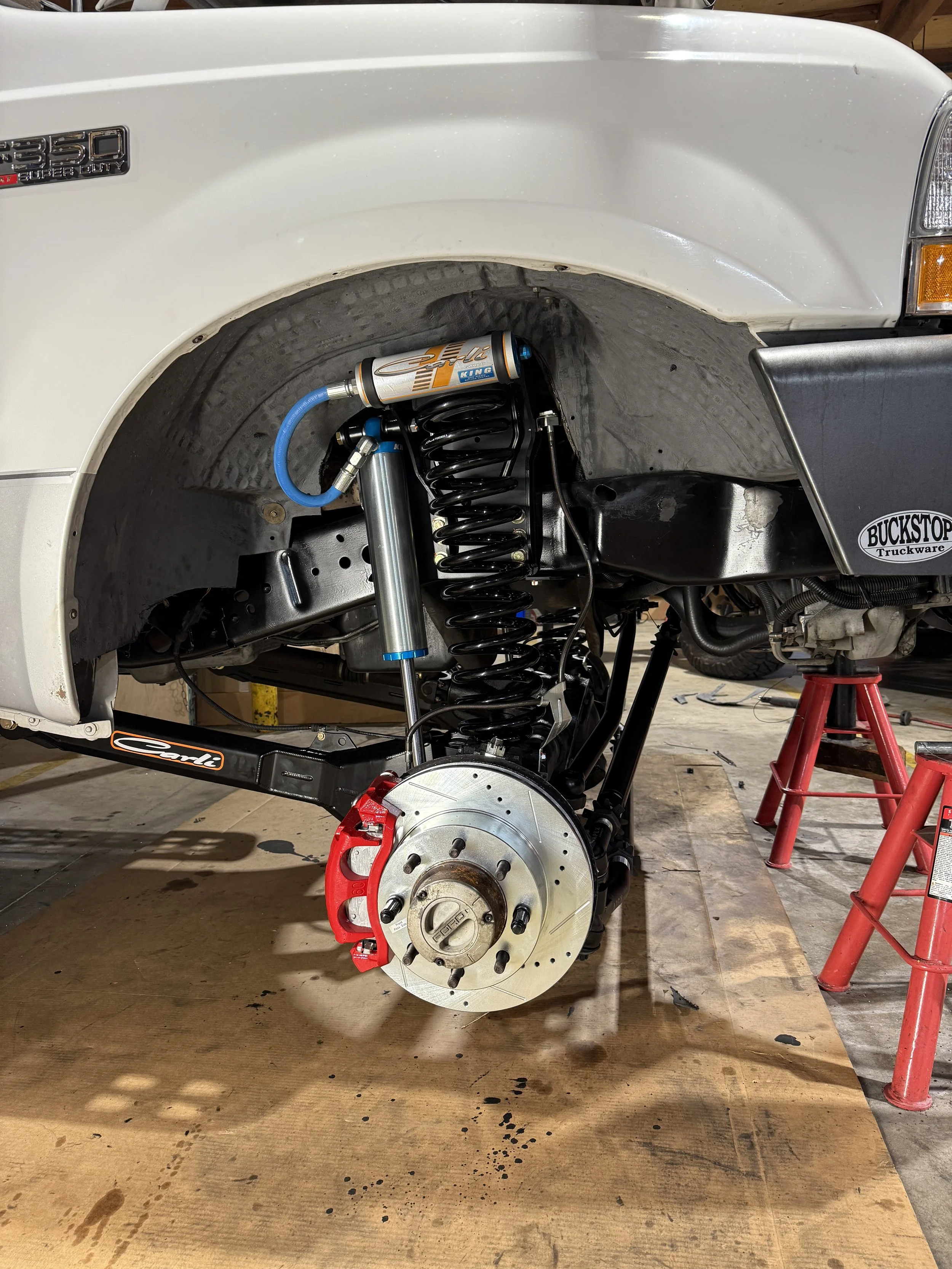

- Carli Spec 3.0 King front shocks · 3.0 King rear shocks
- Carli track bar · radius arms · 2.5" coils · fabricated shock/coil towers
- Carli XXHD rear leaf springs · long-travel airbags
- Hellwig rear sway bar
Steering
- PSC Power steering pump
- RedHead Extreme Duty 2768U 05-08 steering box
- Apex Chassis 05+ steering linkages
- Carli upper and lower steering stabilizers

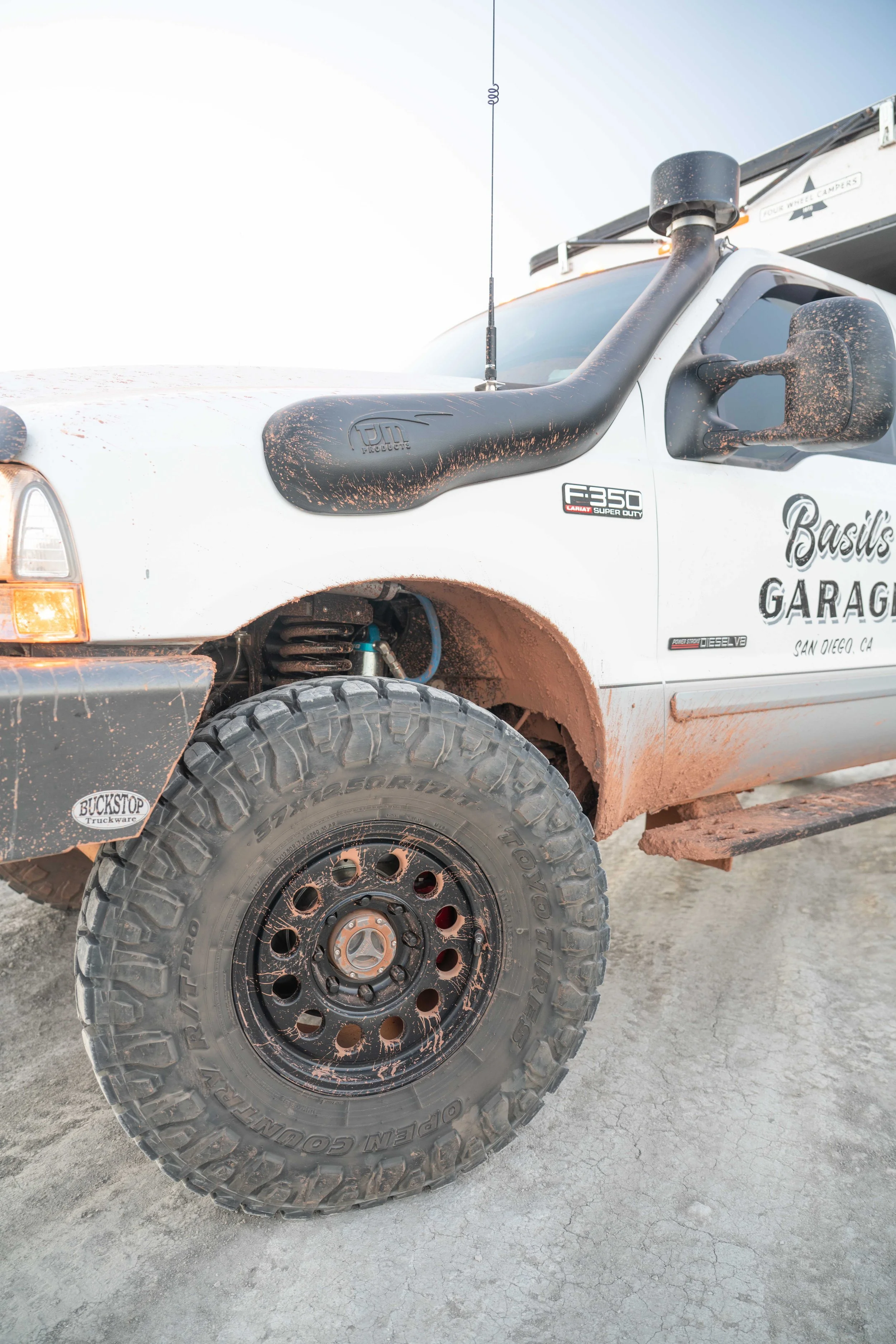

Wheels & Tires
- 37x12.5R17 Toyo R/T Pros
- 17" Nomad Convoy wheels
- Apex valve stems

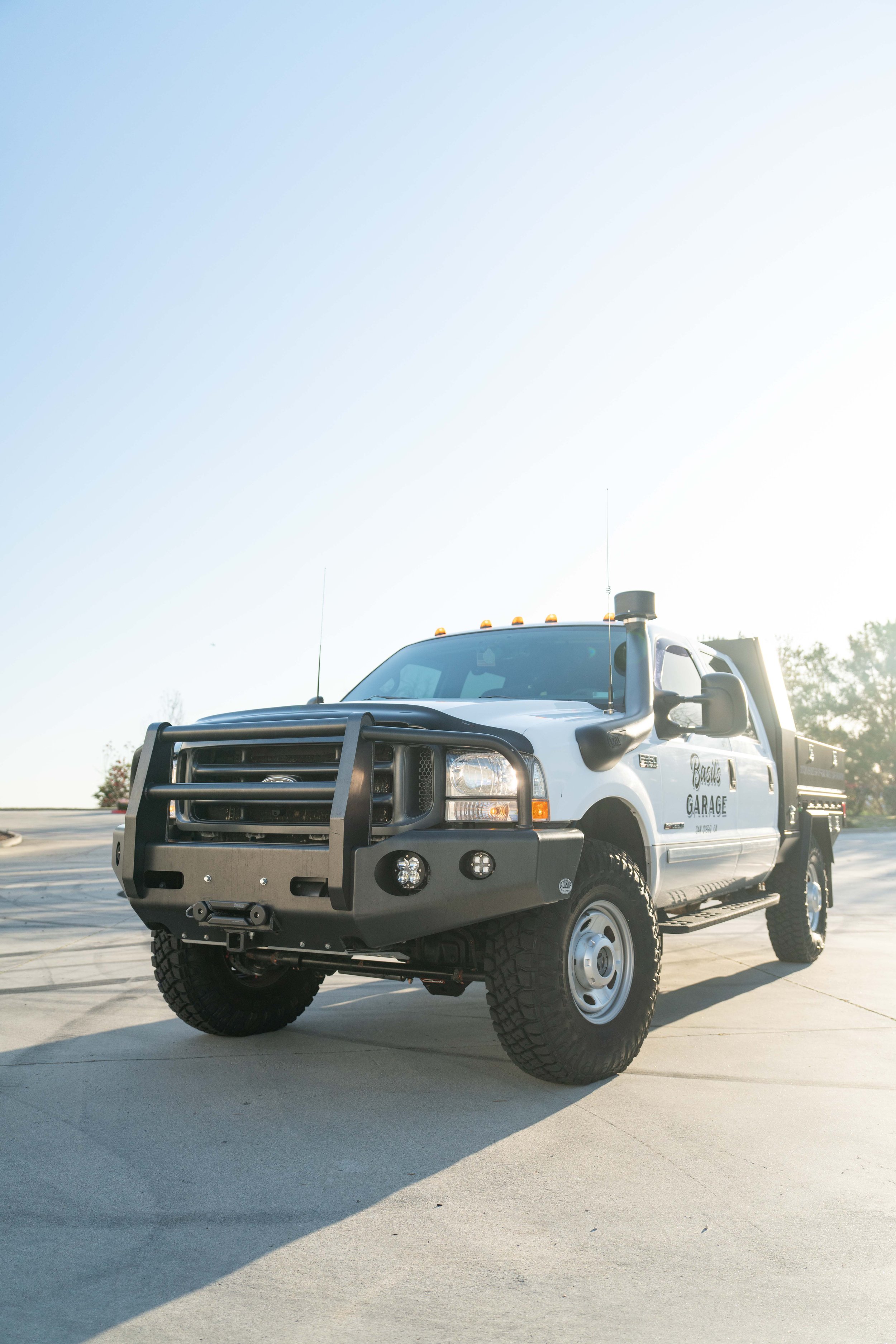

Front End & Armor

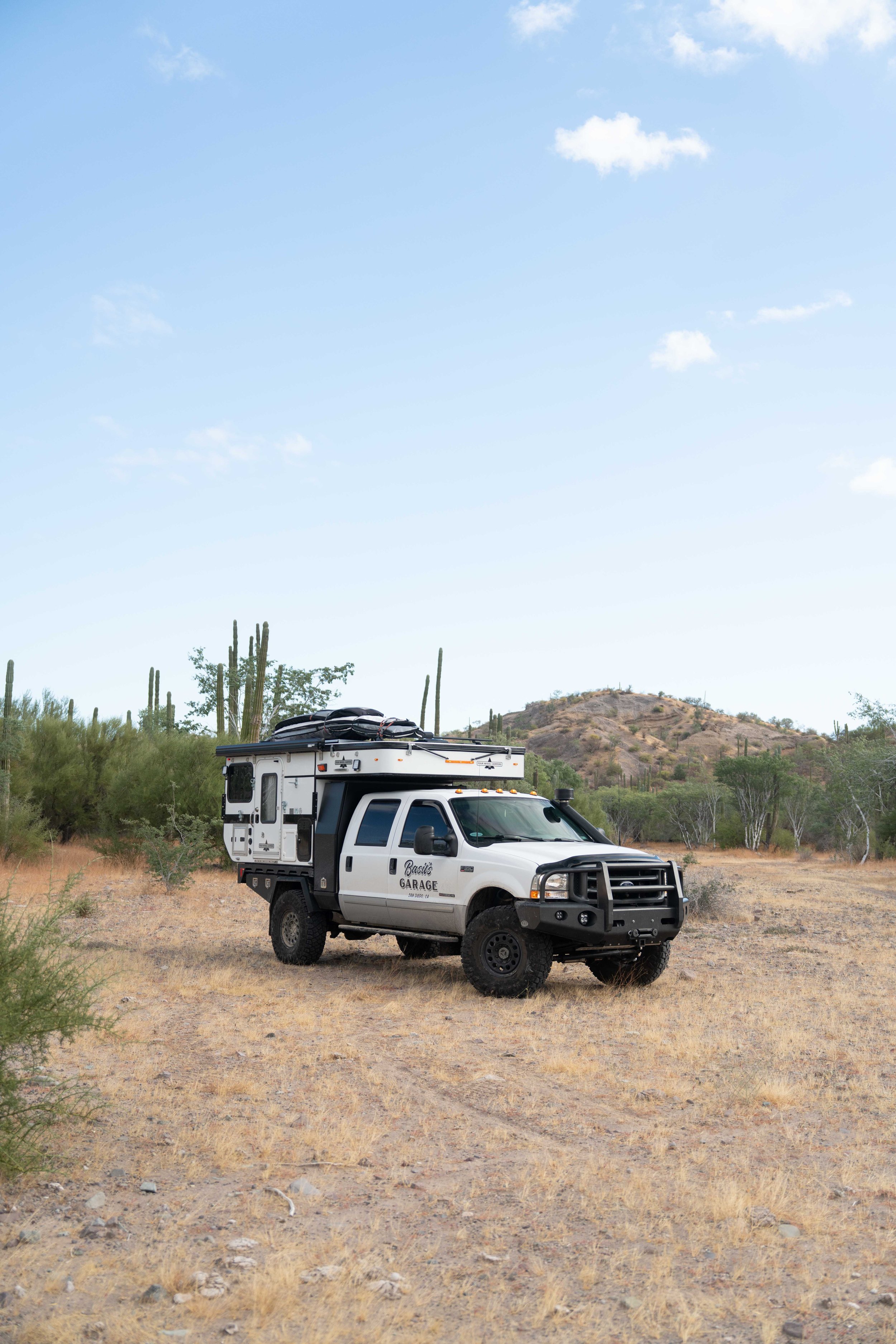

- Buckstop Outback front bumper
- Warn 16.5 TI-S winch with Yankum synthetic winch line and fairlead
- Baja Designs Squadron SAE clear and XL80s — both in the bumper

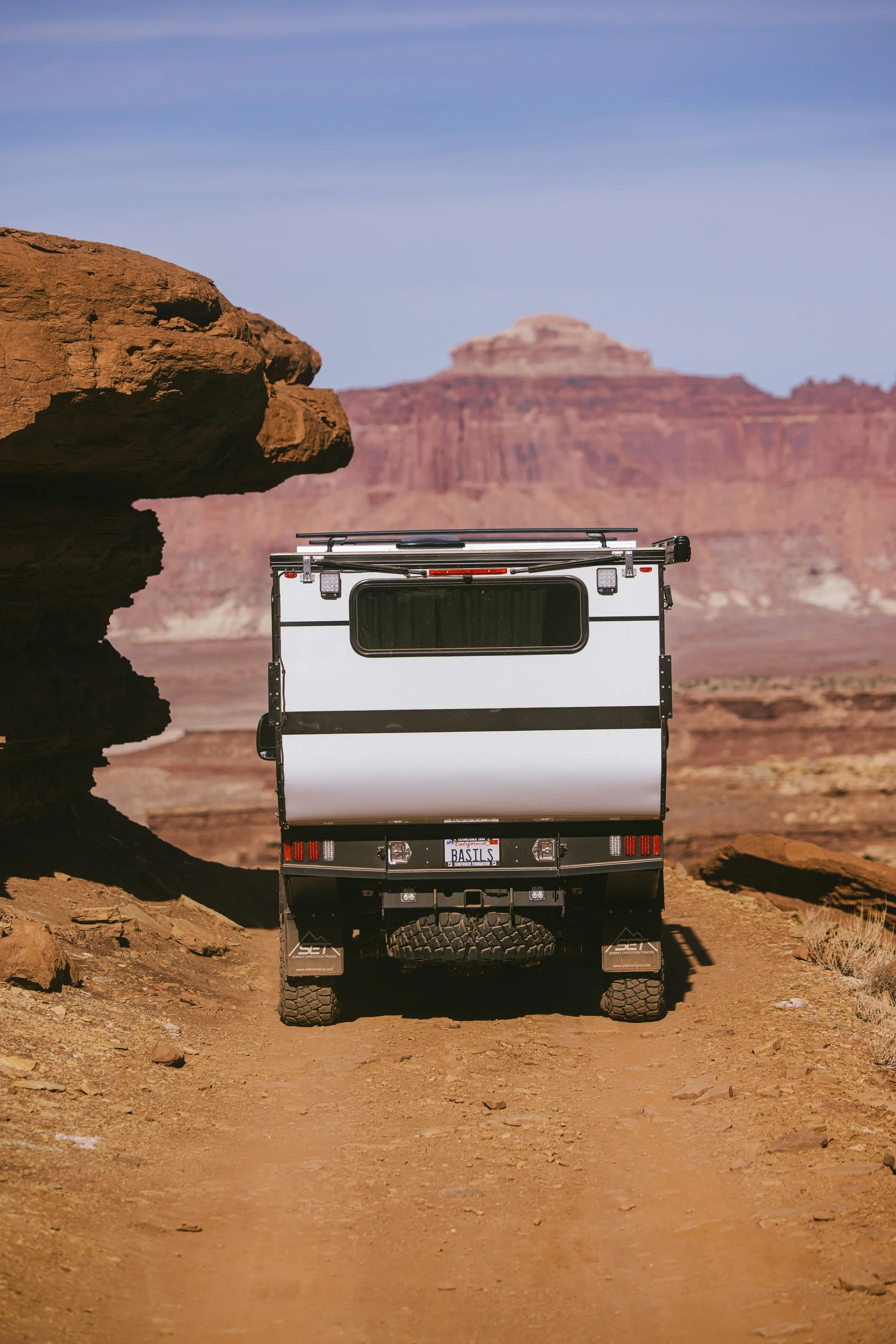

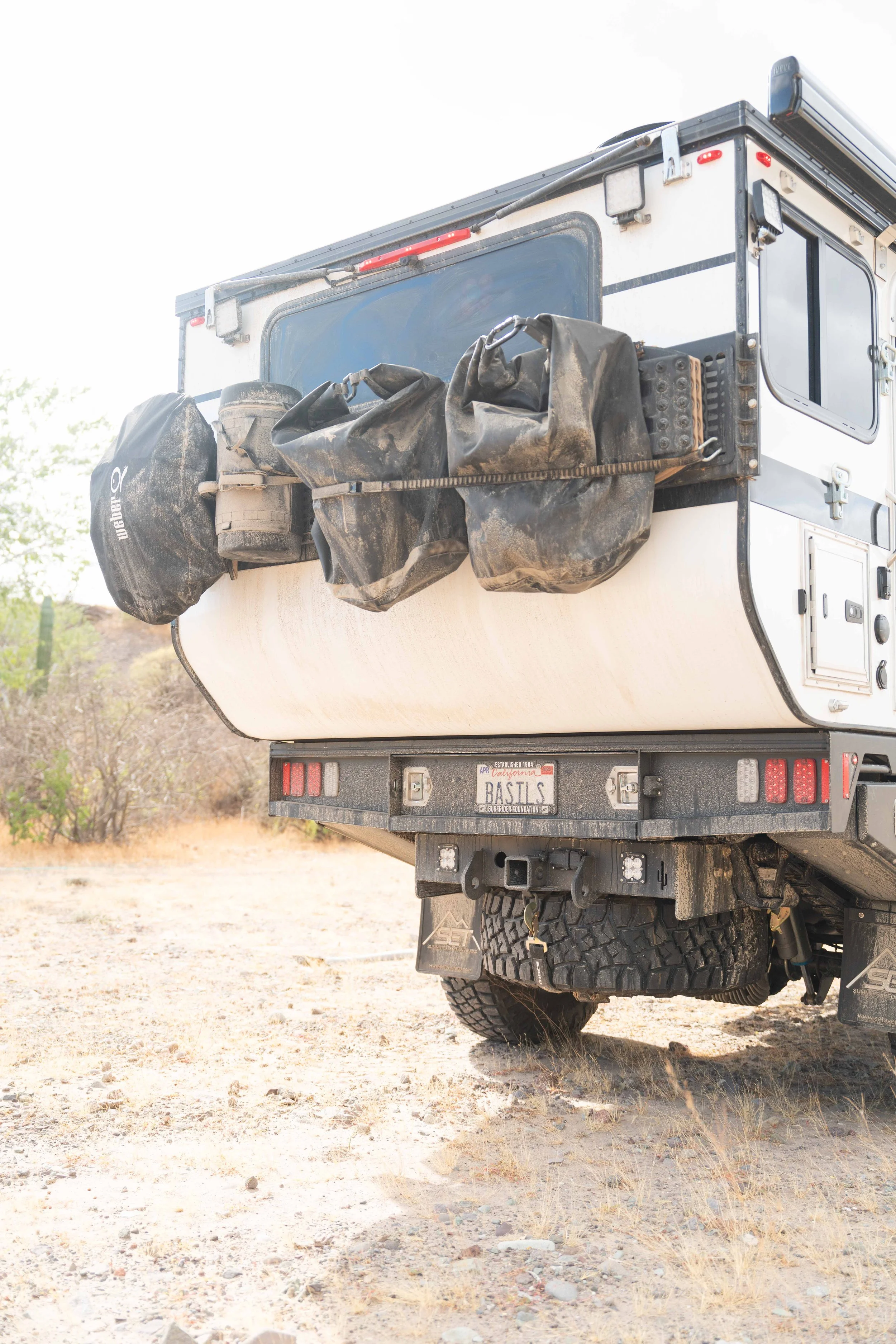

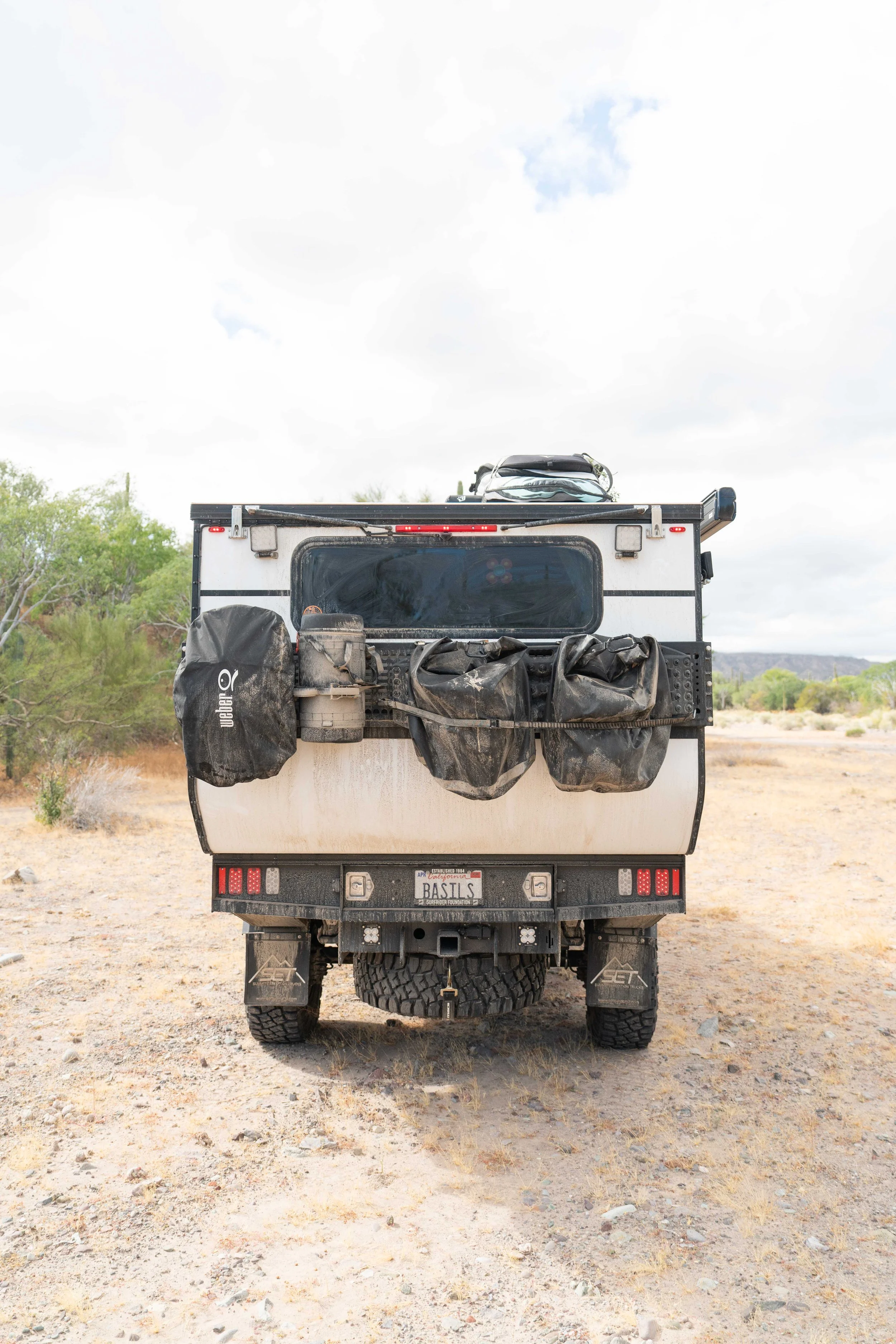

- Custom-built rear hitch for 38" spare
- Custom skid plate on radiator
- Center-frame mud flaps
Fuel System
- S&B 50-gallon replacement fuel tank
Cab & Truck Electrical
- Switch-Pros 8100 accessory switching system
- Yaesu FT-510DR radio
- Full Throttle batteries

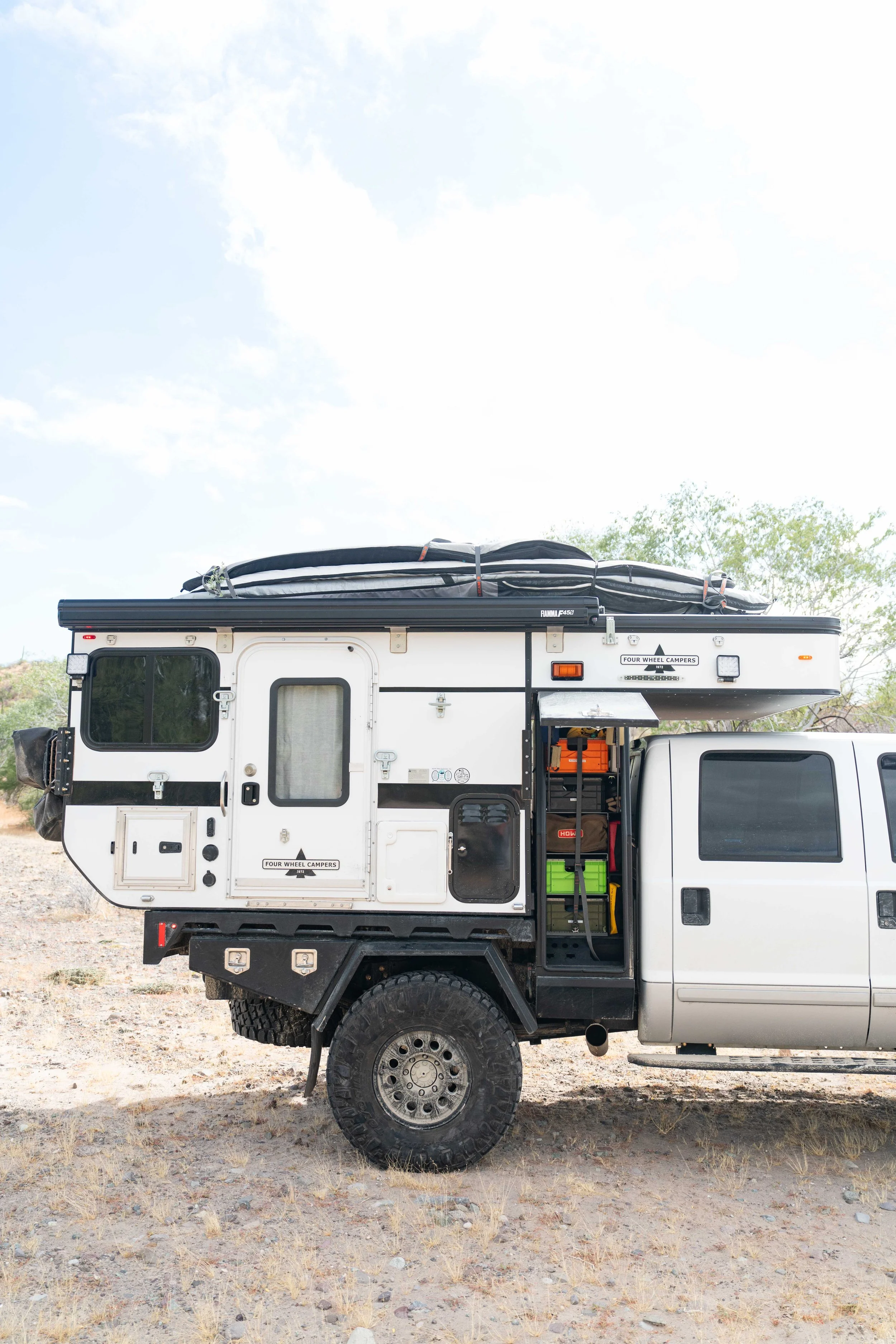

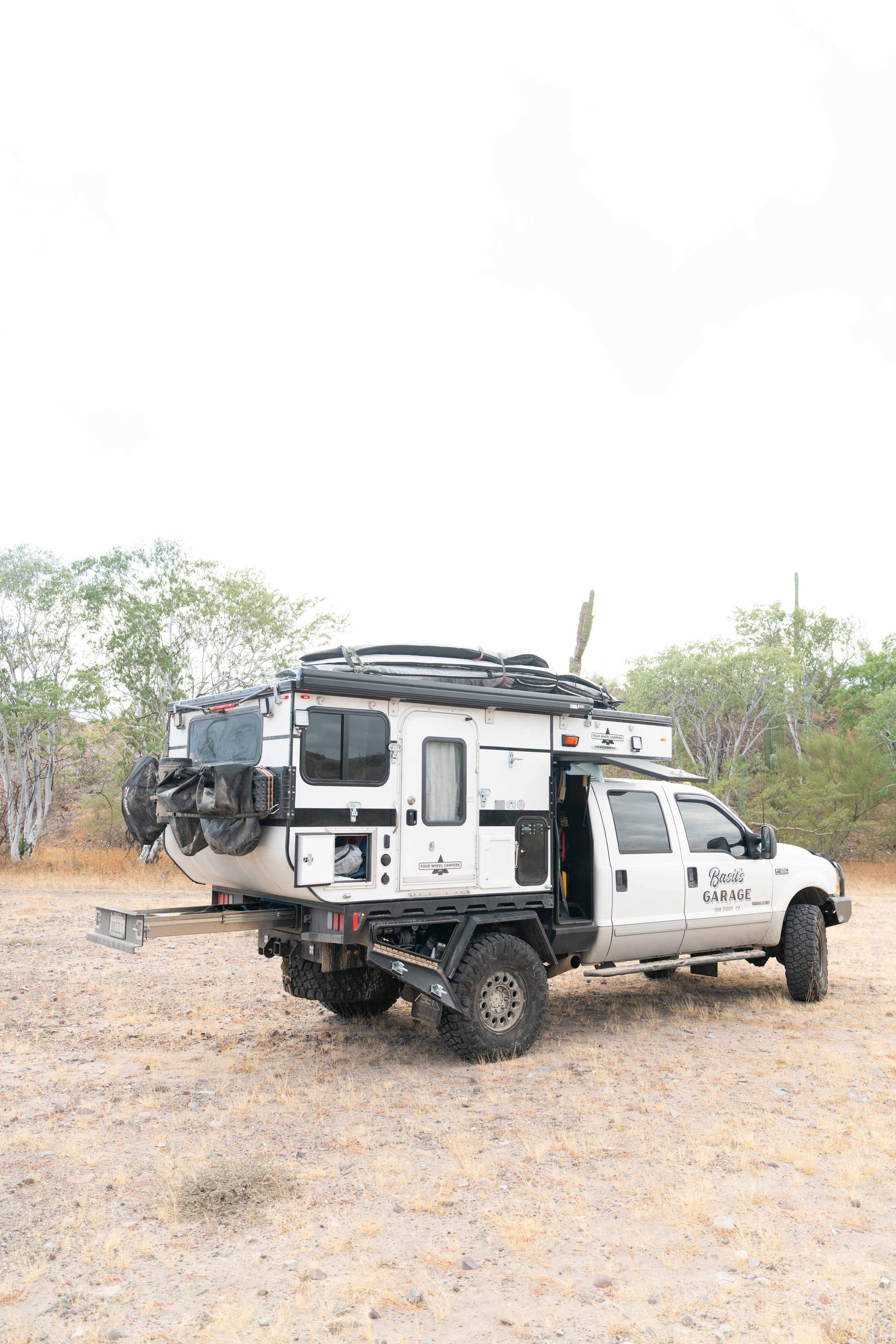

Flatbed / Tray

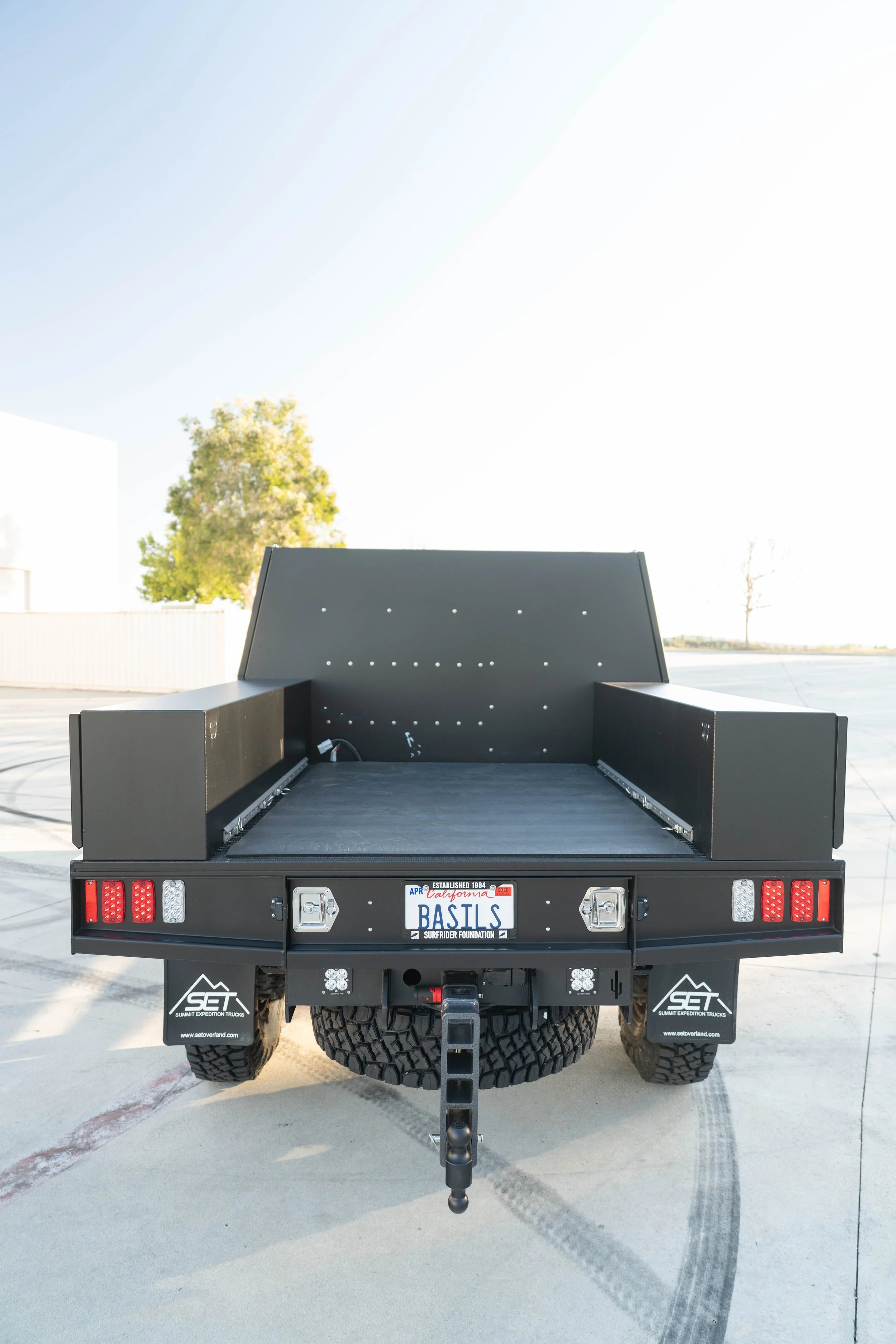

- Summit Expedition Trucks tray

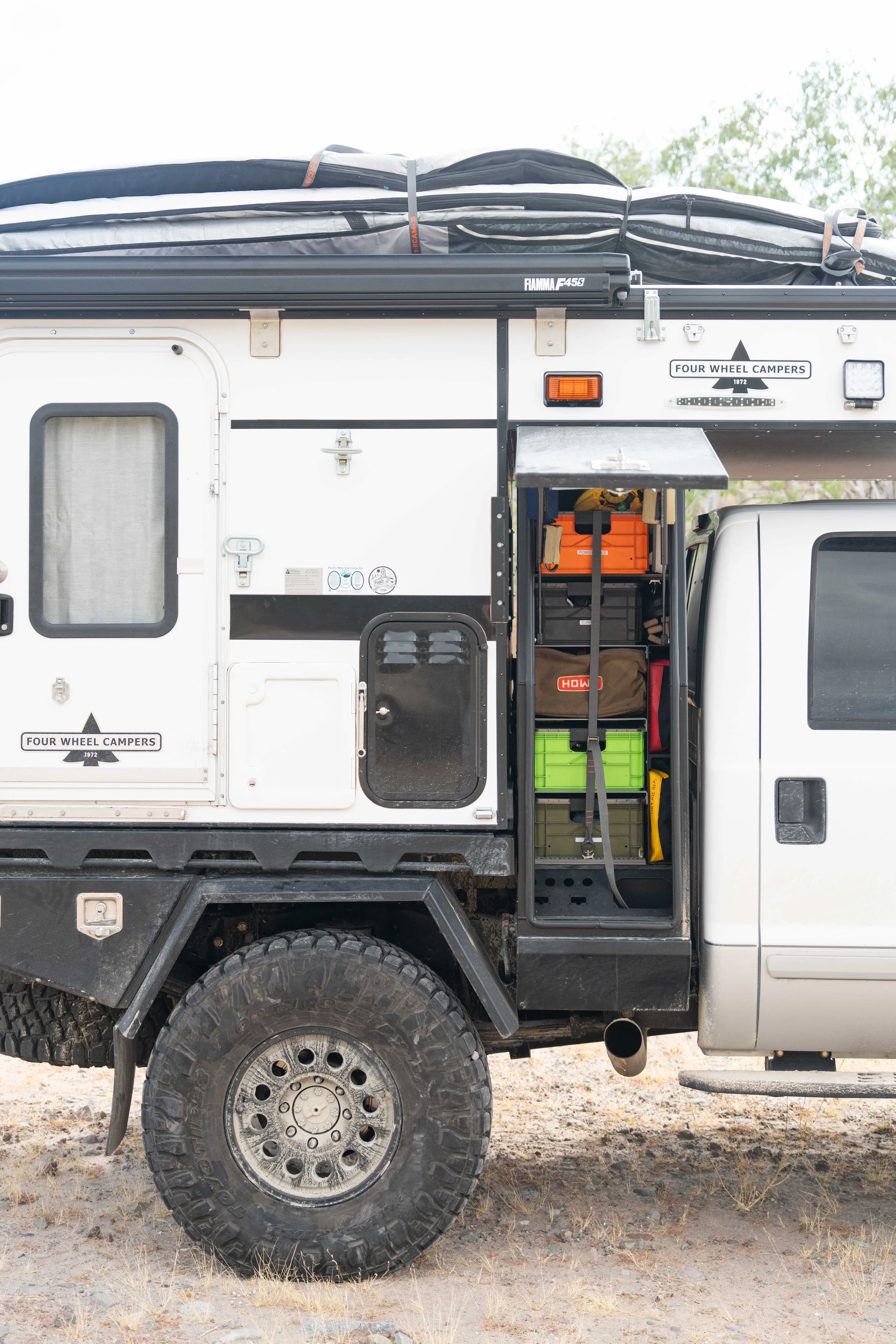

- Custom saddle box · Basil-spec interior, designed in CAD with Ralf at SET
- Under-tray boxes · under-tray drawer
Tray Electrical

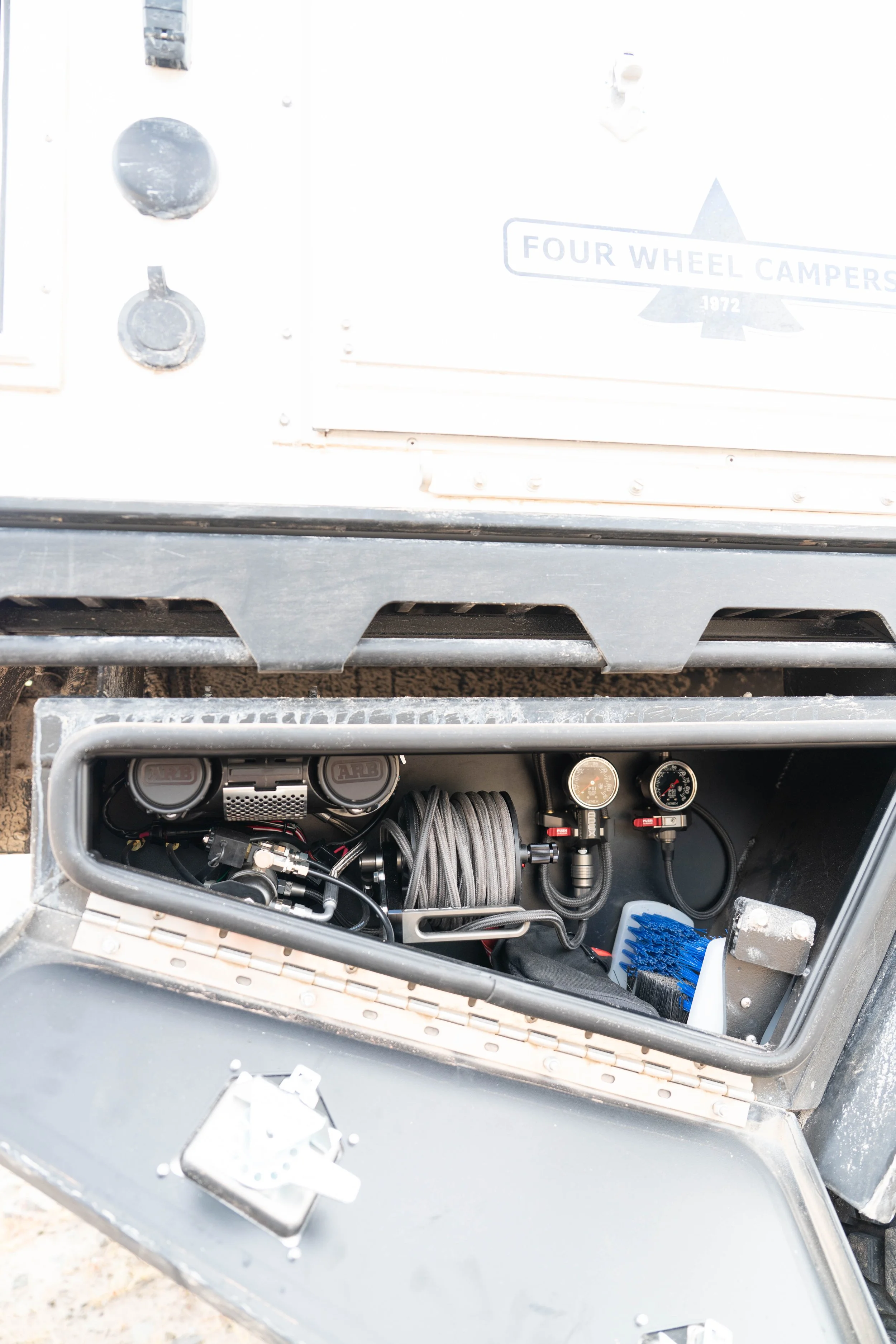

- ARB brushless air compressor (in side box)
- APEX hose reel (in side box)

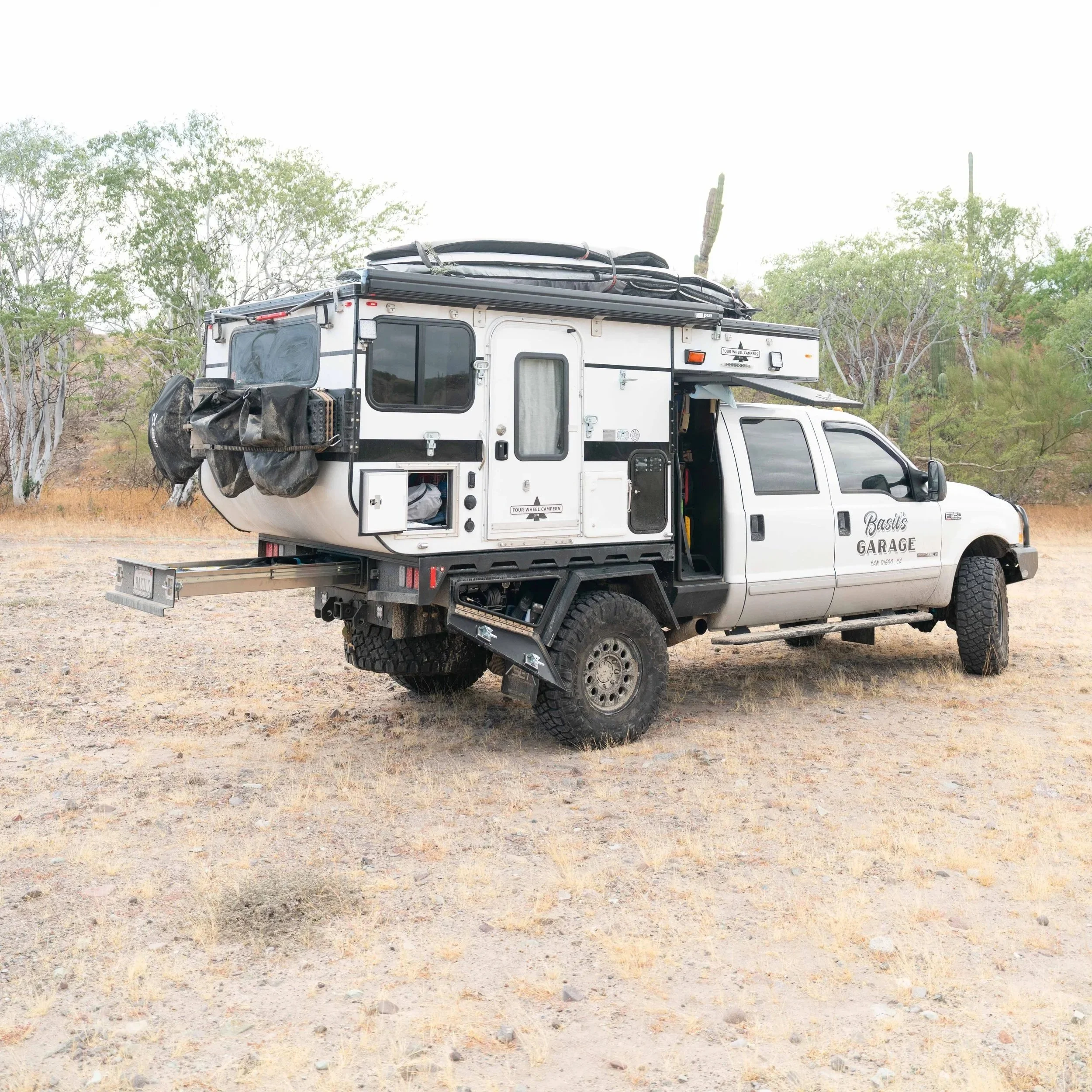

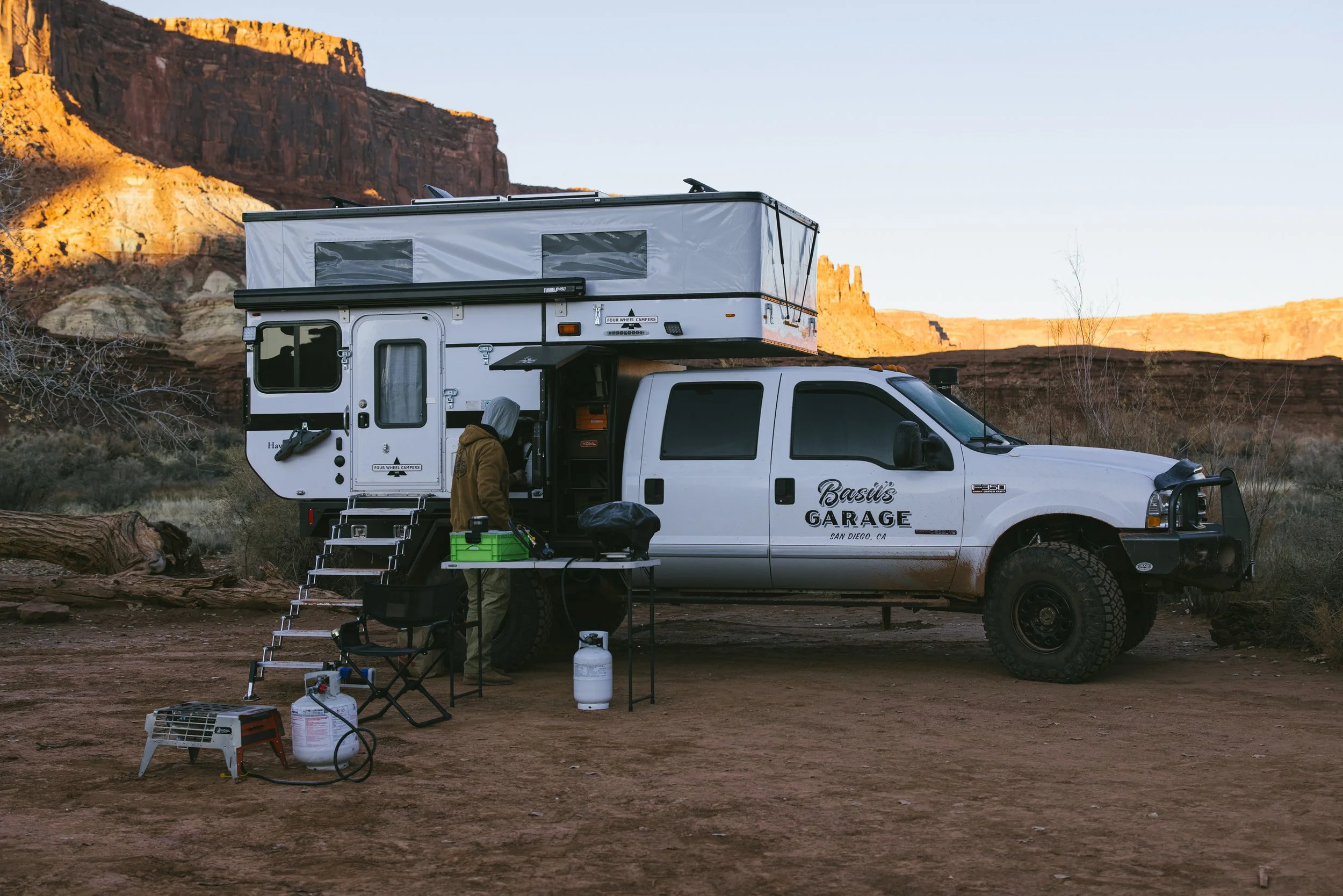

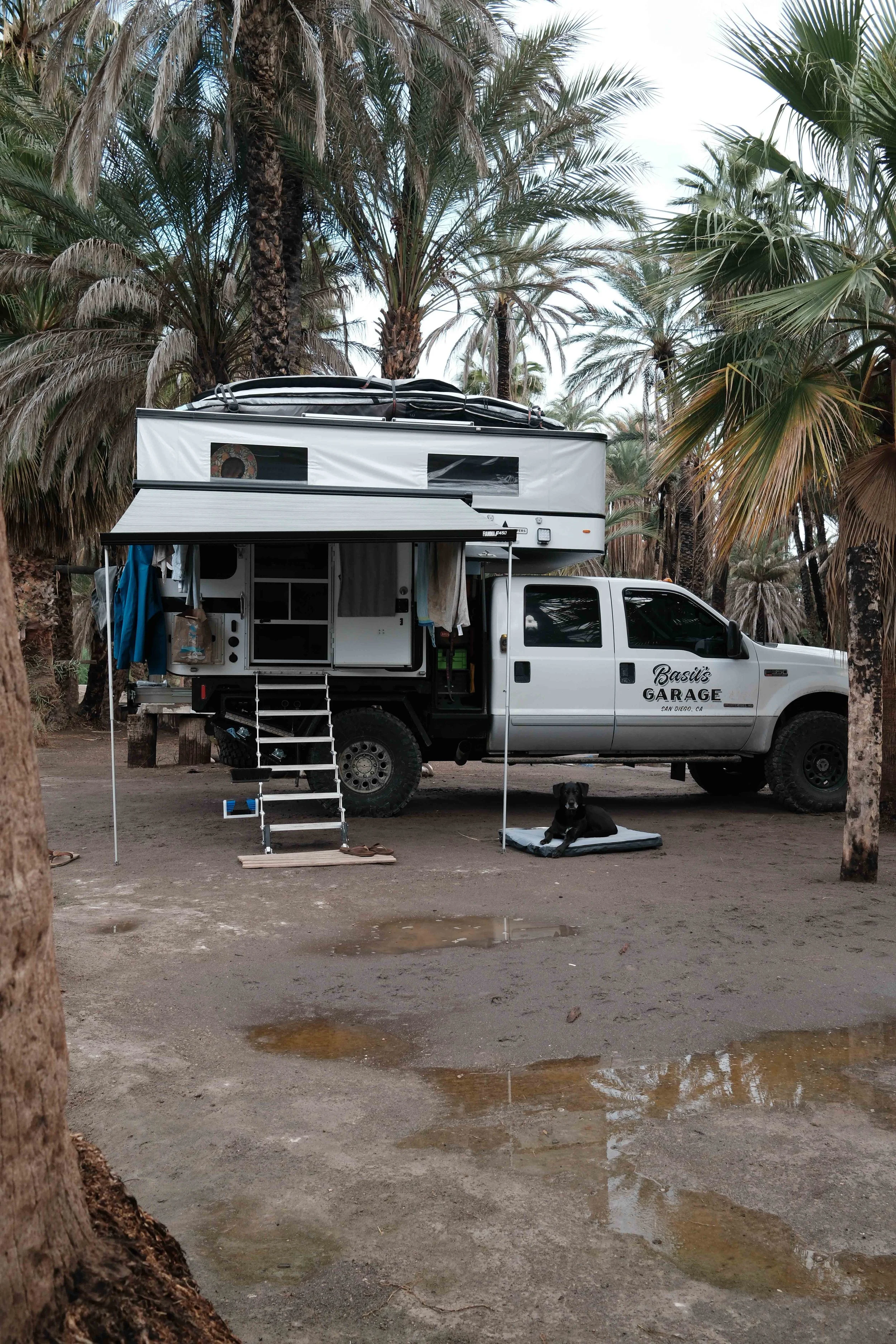

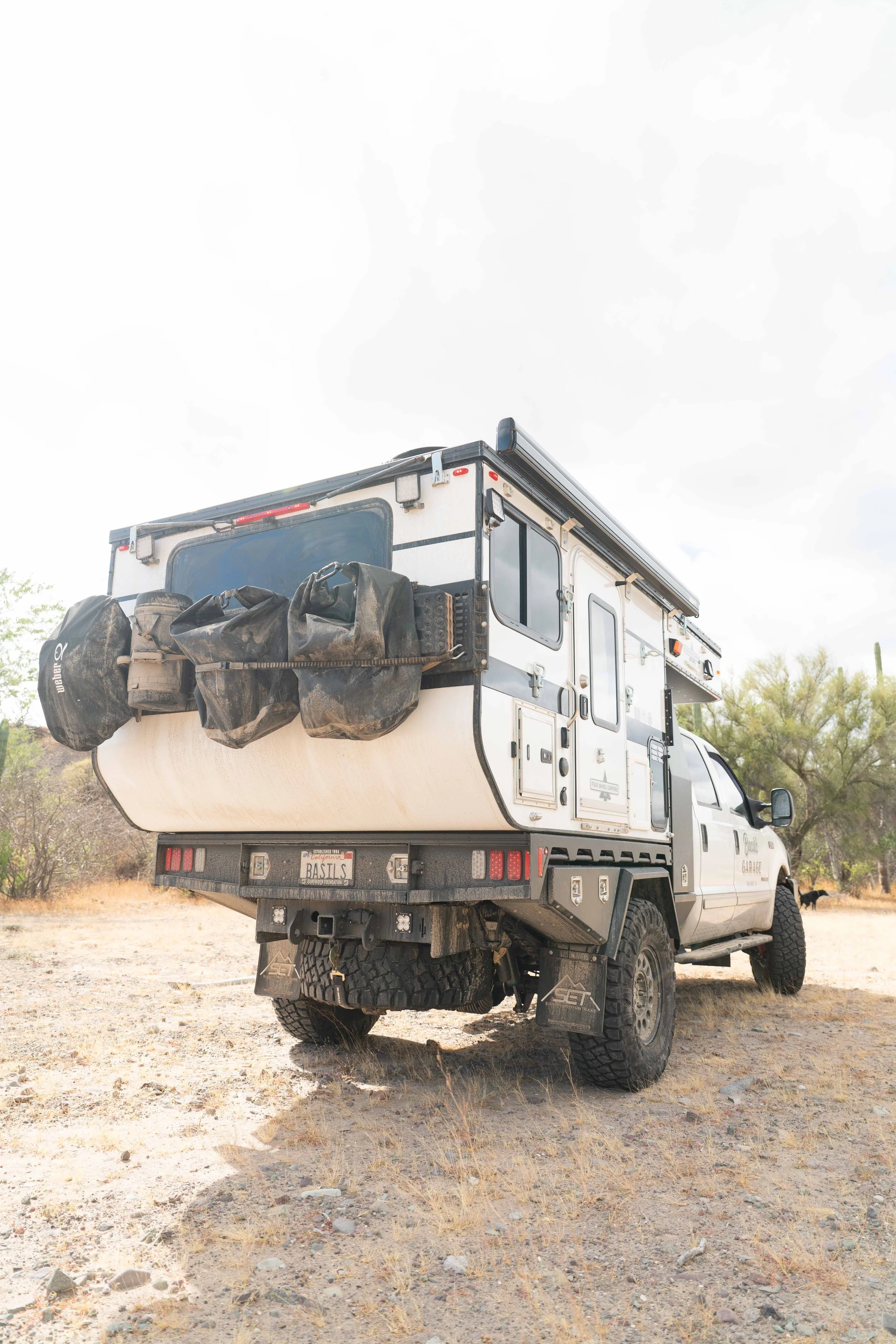

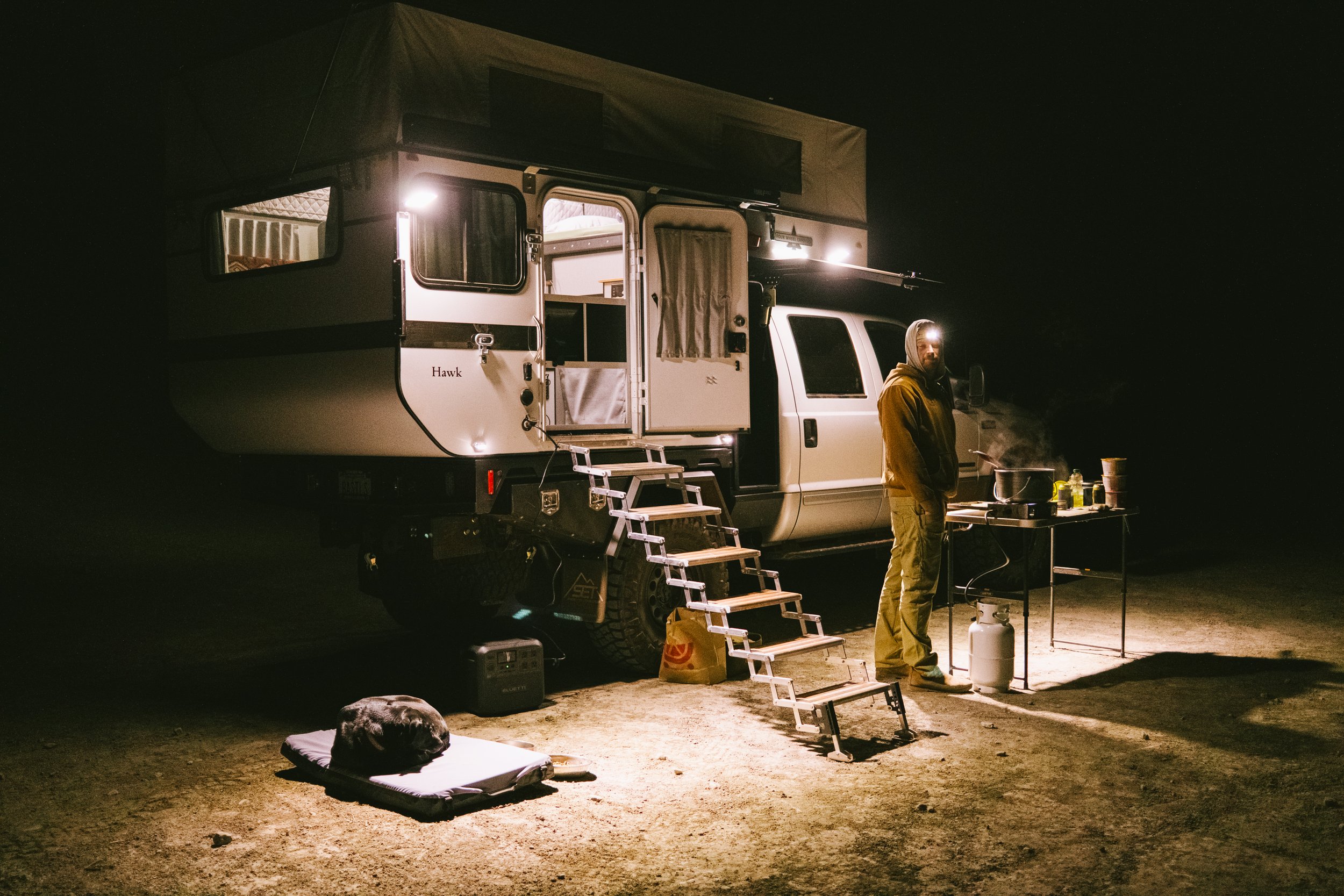

The Camper

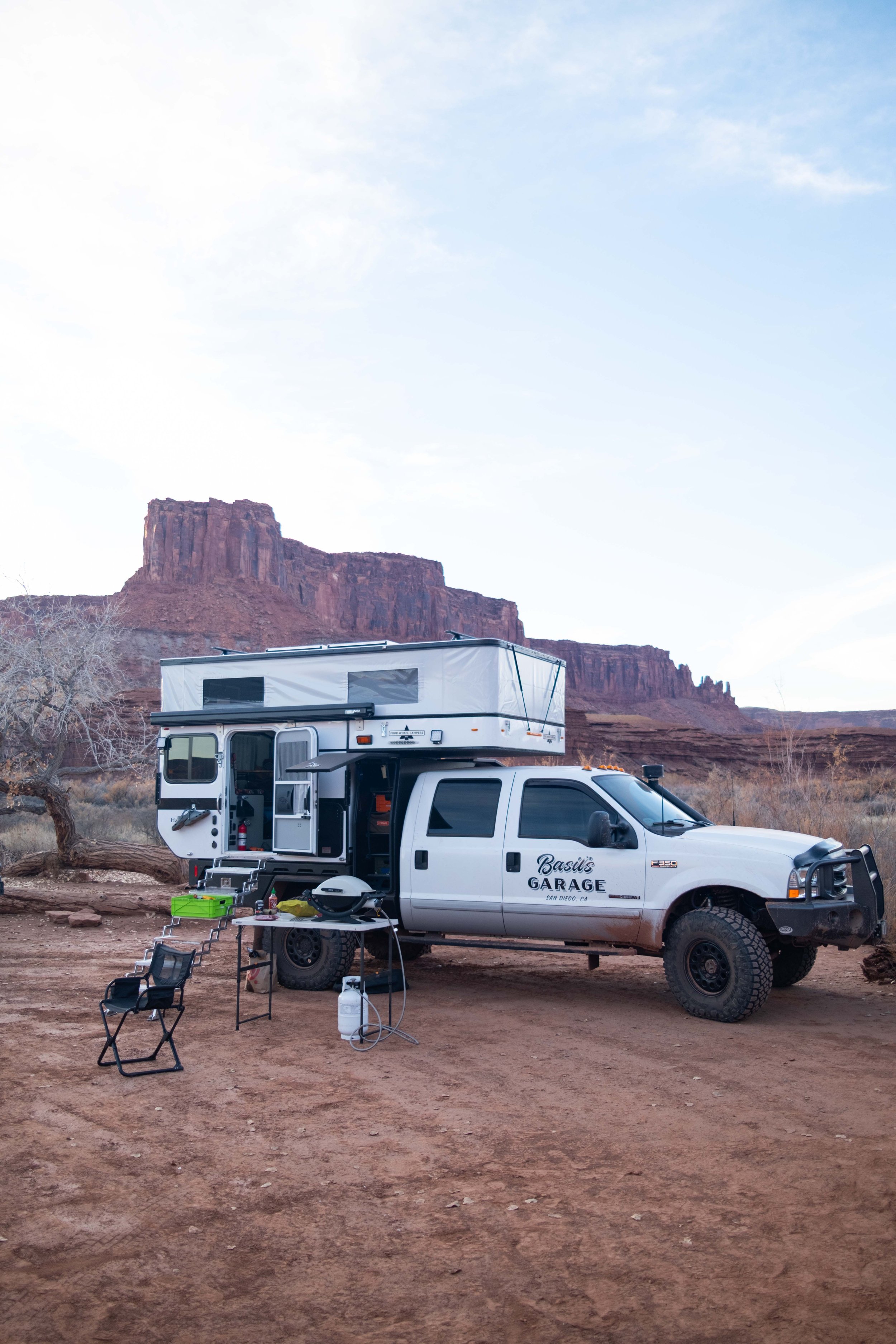

- Four Wheel Campers Hawk Flatbed
- Rear dinette layout
- King bed extension (queen mode for daily use)
- Underbed storage · primary clothes closet
- Twin roof fans (front + rear)
- Truma forced-air furnace
- Truma on-demand hot water heater
- Outdoor shower (hot/cold)
Camper Power System
- REDARC Manager 100 (Alpha 100) · 100A DC-DC + solar + shore charger, with back-feed and self-jumpstart
- 3 × Expion360 162Ah lithium batteries · 486Ah total bank
- 4.8 hour zero-to-full charge time
- REDARC 2000W pure sine wave inverter · with built-in transfer switch

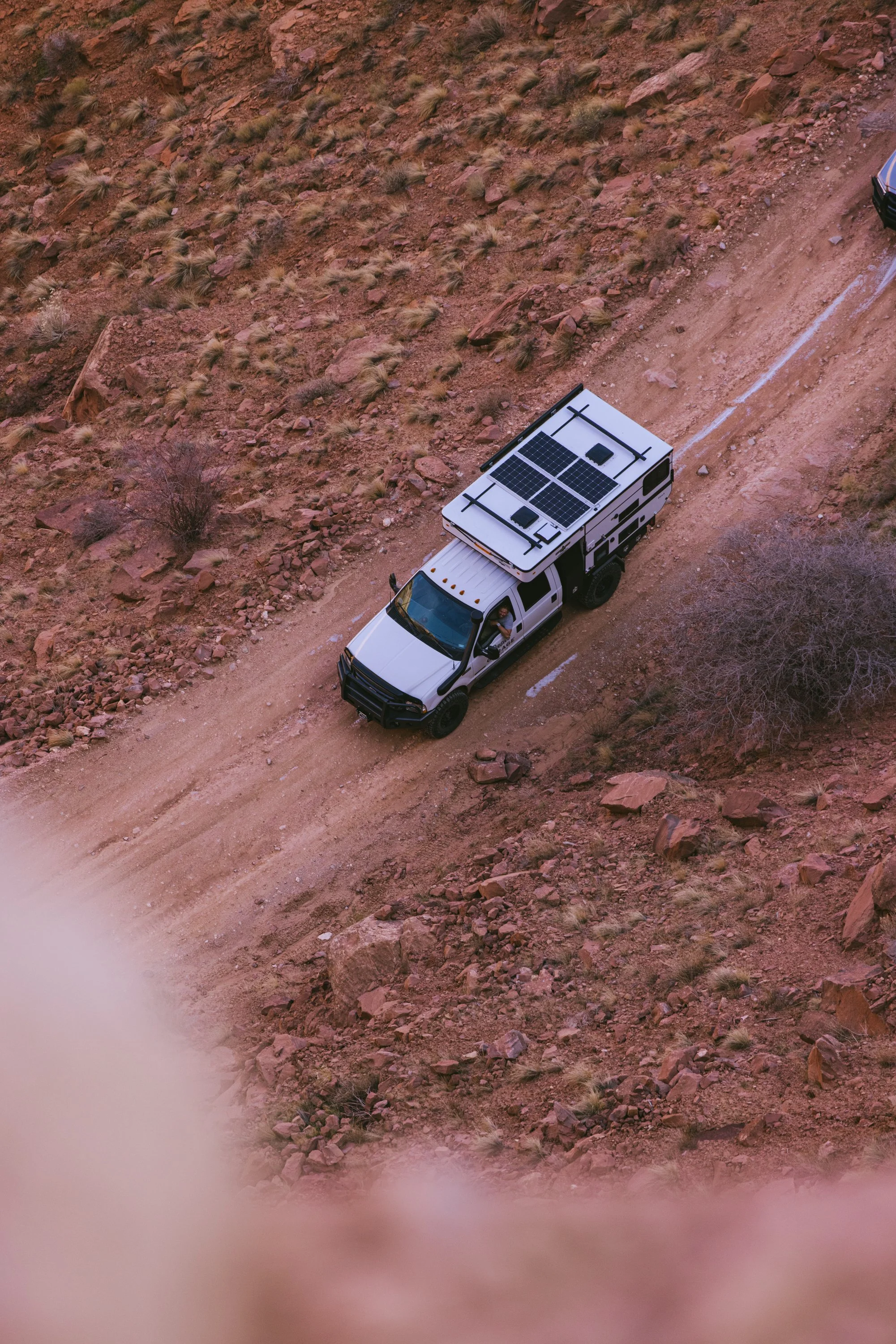

- 500W of roof solar · FWC factory panels
- REDARC Rogue · monitoring + switching + circuit control screen

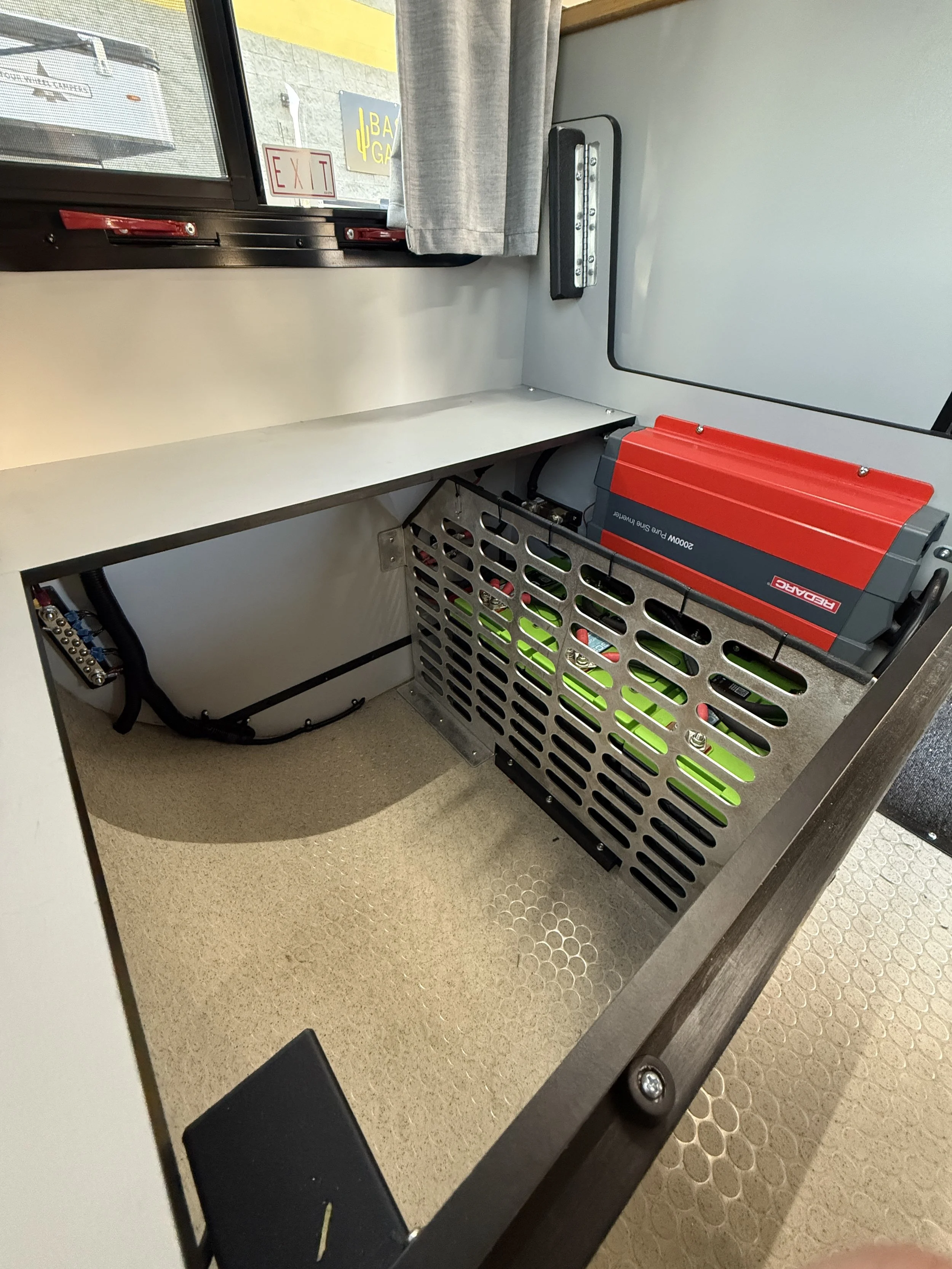

- Battery bank relocated to driver-side rear dinette · frees front cabinet for pantry conversion
Camper Interior Mods
- Hest mattress, pillow, and duvet system
- Custom side access door · Basil-installed for direct outside access to passenger-rear storage
- 4× USB-C ports by the bed
- 100W high-amp USB-C at the dinette for laptop charging
- Custom 3D-printed organizers · phone trays, headlamp/key cubbies, baby bottle holder
- Pantry conversion · front cabinet repurposed after batteries relocated
- Aluminum dividing wall · separates electronics from bedding storage
Water System
- 20-gallon freshwater tank · factory, in camper
- 10-gallon auxiliary · custom-mounted in saddle box
- 13-gallon auxiliary · under SET tray
- 43 gallons total capacity · 23 of those outside the camper
- Pressurized transfer pump · plumbed for fill/drain/shower
Connectivity
- Starlink · roof-mounted with magnetic landing pad (Mantis Claws bracket system)
- Scan Strut waterproof connectors · on every roof penetration
- Factory FWC Starlink port · for ground-deployed setups when needed
