Customer Build · Camper Build

Chris's F-250.

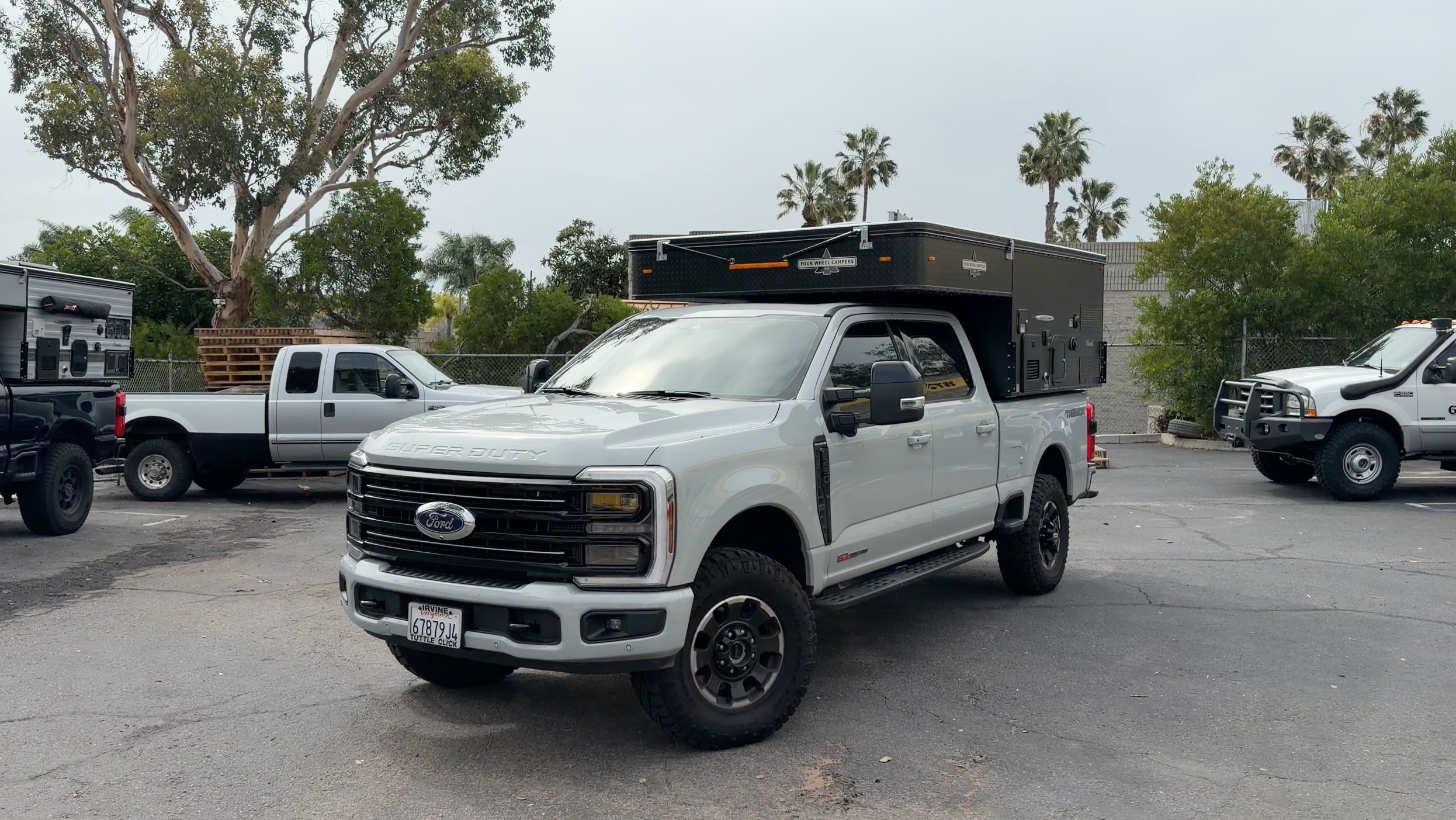

2025 Ford F-250 + FWC Hawk.

Stock truck plus a sway bar, an under-seat air compressor, and a Hawk. Sometimes you don't need to do much.

Why a minimal F-250 build?

Chris brought us his 2025 F-250 Lariat with a clean ask: a Hawk on the back, and just enough done to the truck to make it ride well loaded. The 6.7L Power Stroke HO and the F-250's factory payload mean you actually don't need to do much to a Super Duty to haul a slide-in camper — the brakes are big enough, the factory tires are load-rated, and the platform is built to carry. So we kept it minimal. There's plenty you could add — a Carli kit, bigger tires, bumpers — but for this customer, a clean stock truck with a couple of targeted upgrades was the right call.

What we did add was a Hellwig 1-5/16" Big Wig rear sway bar — tightens body roll up under the camper for cleaner cornering on freeway off-ramps and tight bends — and an under-seat ARB Twin on-board air compressor system. The compressor mounts in the back-seat fold-flat storage on the SuperCrew, with air-chuck connection points at each rear door and the controls wired through the factory upfitter switches. ARB digital inflator and high-heat hose included. This is the same setup we run on most of our Super Duty non-flatbed builds now — if airing back up isn't easy, you'll never air down, so a built-in solution earns its keep.

On the back is a brand-new 2026 FWC Hawk side dinette in Matte Black Diamond Plate exterior — pretty close to fully optioned. King bed slide with underbed storage, twin Max-Air roof fans, Truma furnace and Truma water heater with an outdoor shower, the 85L Iso-therm fridge, the quilted thermal pack with window covers, the carpet kit, and both exterior LED lighting and rear LED floodlight packages. Power is two Expion360 162Ah lithium batteries on the factory FWC BCDC 25A DC-DC charger with Victron monitoring, and we added a 180W REDARC glass solar panel up top on our custom roof mounts. Yakima tracks installed for whatever rack accessories Chris adds down the road. Sometimes the right build is the one that doesn't try to do too much.

Build Sheet

The complete build — vehicle, suspension, on-board air, camper, power, and water.

The Vehicle

  • 2025 Ford F-250 Super Duty Lariat · crew cab, 6' bed, 4WD
  • 6.7L Power Stroke HO turbo diesel · 10-speed automatic

Suspension

  • Hellwig 1-5/16" Big Wig rear sway bar · 17-25 Ford F-250/350 Super Duty 4WD

Cab & Truck Electrical

  • ARB Twin on-board air compressor · mounted under the rear seat in the SuperCrew locking fold-flat storage compartment
  • SDHQ-built ARB compressor mount · F-250/F-350 specific
  • SDHQ ARB Twin 9' extension harness
  • Dual air chuck system · connection points at each rear door for easy switching between tires
  • ARB digital tire inflator + ARB high-heat air hose
  • Wired through factory upfitter switches

The Camper

  • Four Wheel Campers Hawk · 2026 model year, slide-in, Matte Black Diamond Plate exterior siding
  • Side dinette layout · with king bed slide and underbed storage (cabover sits taller and longer with the underbed option)
  • Twin Max-Air roof fans · one over the bed, one over the kitchen
  • Truma forced-air furnace
  • Truma on-demand water heater with outdoor shower
  • Flush-mount sink and stove · new deeper sink design
  • 85L Iso-therm 2-way refrigerator/freezer
  • Quilted thermal pack with full window covers
  • Carpet kit · over the linoleum floor
  • Yakima 'Tracks Only' roof rack mounts · installed and ready for crossbars and accessories
  • Rear LED floodlight package · two pivot-mount flood lights on the rear wall
  • Exterior LED lighting package · side lights and ground lighting for soft camp light
  • Rear wall fold-down steps · roof access plus a place to hang trash bags, wet suits, and gear
  • Marker lights wired into the factory running-light circuit
  • Black Oxide cabinets · bamboo countertop · Grey Ash flooring · Heritage Leaf seat and bed fabric · Matte Black Diamond Plate siding

Camper Power System

  • 2× Expion360 162Ah lithium batteries · ~324 Ah total
  • REDARC BCDC 1225 · 25A DC-DC + solar charger, factory FWC option
  • Victron monitoring system · battery state of charge, voltage, and solar input
  • Victron Orion DC-DC converter · steps voltage up for the Starlink Mini at the factory FWC sidewall port
  • 180W REDARC glass solar panel · roof-mounted on Basil's Garage custom mounts
  • Factory FWC Starlink port · wall-mounted, customer-supplies the dish
  • Master push-pull power switch · 12V fuse panel · 110V outlets hot on shore power
  • Inverter add-on path: the BCDC 1225 setup doesn't include a factory inverter on side dinette campers — a Manager 30 + REDARC inverter retrofit is available through Basil's Garage if Chris wants to make the 110V outlets hot off battery in the future.

Water System

  • 20-gallon FWC freshwater tank · standard on slide-in Hawks
  • Truma on-demand water heater
  • Outdoor shower · driver-side hookup (no indoor shower or toilet on this build)
