Customer Build · Camper Build
Justin's Tremor.

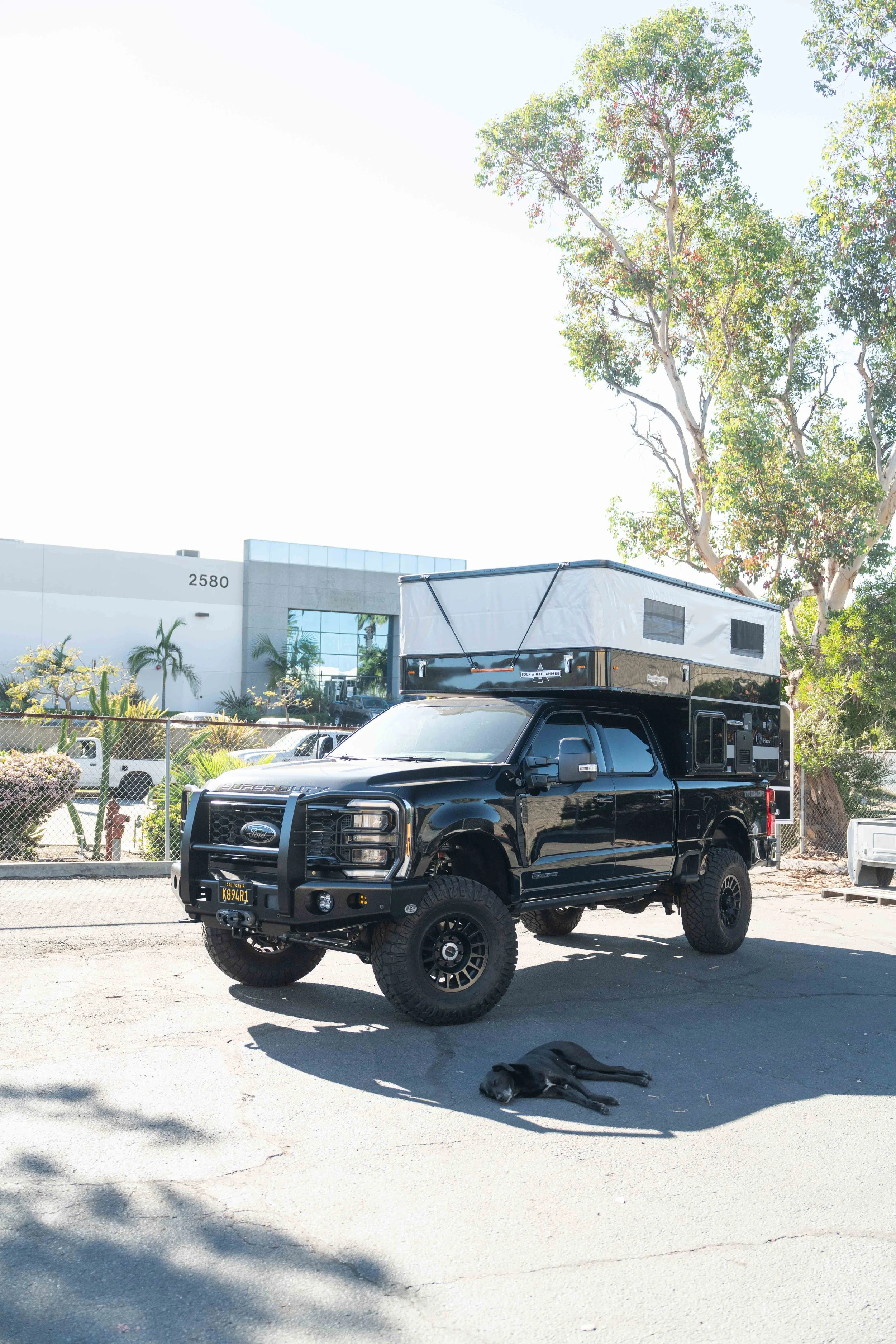

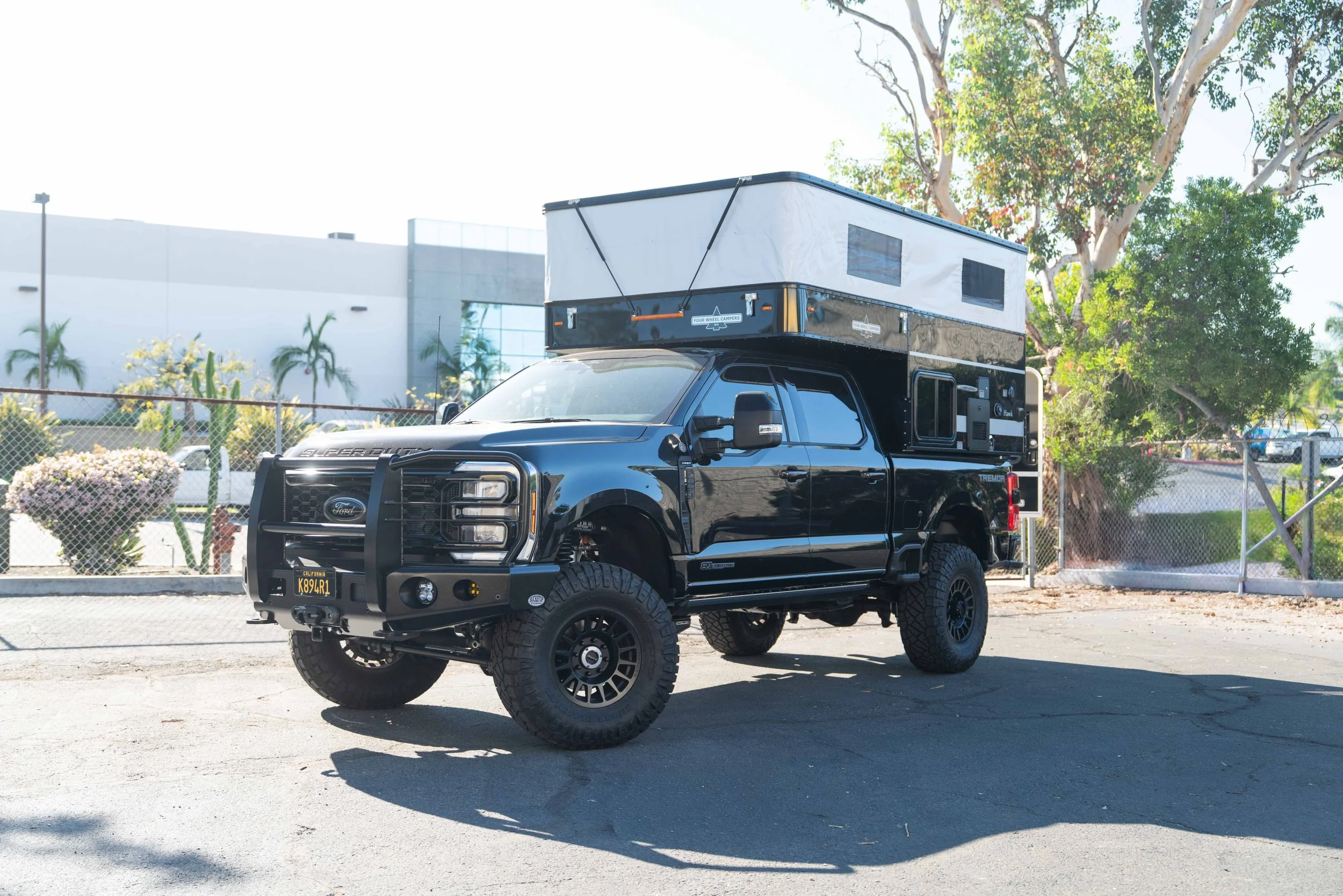

2026 Ford F-250 + FWC Hawk
5.5-inch Carli Dominator, 38s, Buckstop bumper, and a Hawk camper. Built to drive harder than most overland builds.
Why a 5.5-inch Dominator?
Justin came in wanting two things out of his Tremor: a comfortable rig to camp out of with a Four Wheel Campers Hawk on the back, and the ability to drive that rig harder and faster than most overland builds get to see. Most of our Super Duty customers go with the Carli 2.5-inch Pintop kit — it's the easy default for a camper truck. Justin wasn't most customers, so we went a different direction.

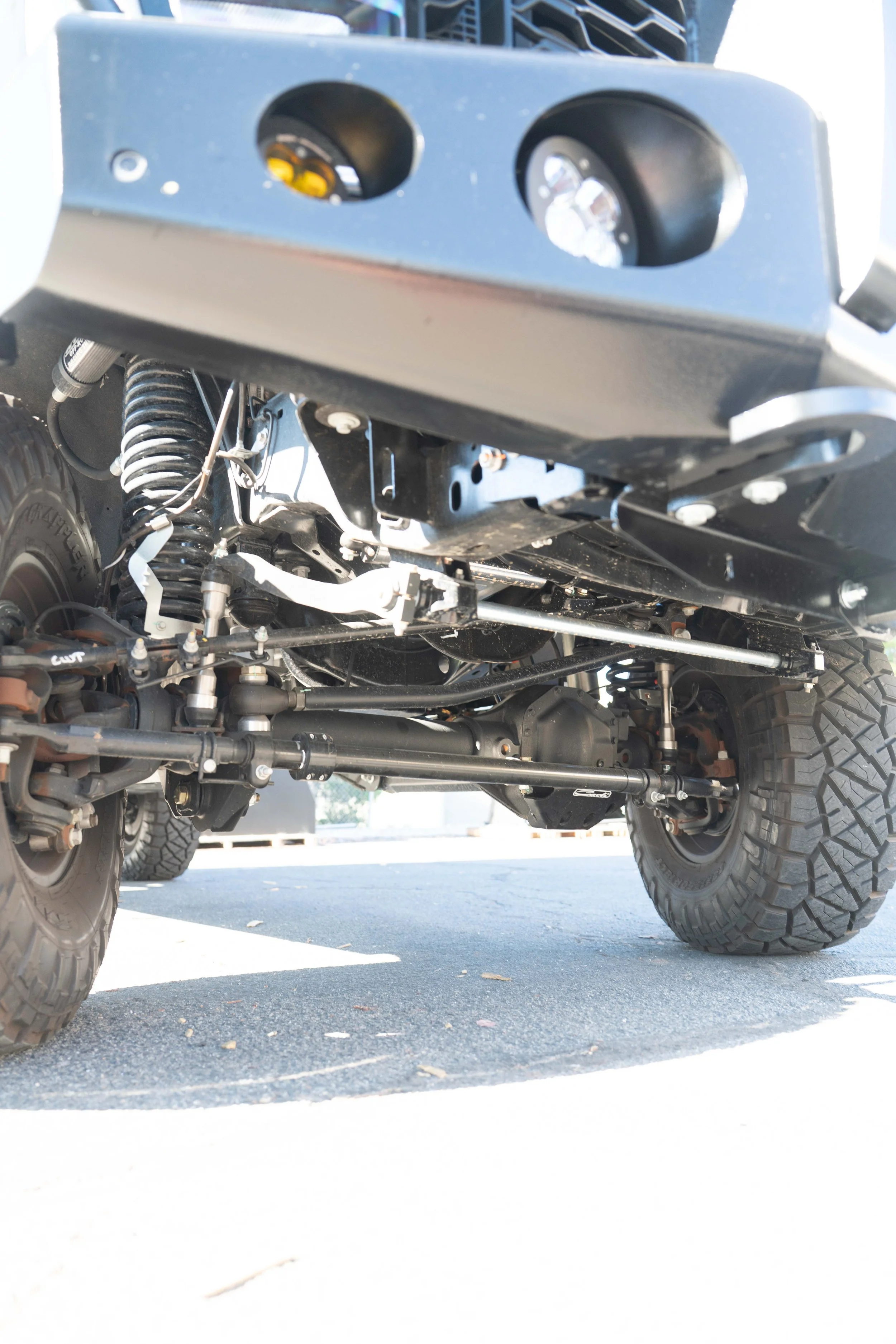

The build is anchored on the Carli Dominator 3.0 system at the taller 5.5-inch lift height. The Dominator runs 3-inch body King shocks instead of the 2.5-inch Pintops — bigger pistons, more shock fluid, significantly better body control on rough roads at speed. On a 23+ aluminum-bodied Super Duty, the 5.5-inch lift is also a prerequisite for that Dominator setup. With it came Carli's torsion sway bar, dual high/low steering stabilizers, fabricated radius arms with limit straps, HD progressive leaf springs, upgraded shackles, long-travel double-bellow airbags, and the Carli Trophy Hitch — a replacement rear hitch that swallows a full 38" spare in the factory location while keeping the truck's full 16,000 lb tow rating.
Wheels and tires landed on Method 707 Bead Grips wrapped in 38" Nitto Ridge Grappler R/T E-rated rubber — the load-rated tire for a truck that's going to carry a slide-in camper. Up front sits a Buckstop Outback bumper, our gold-standard front-end on Super Duty builds because it retains every factory sensor — parking, adaptive cruise, crash warning, all of it. Inside the bumper went a Warn 16.5 TI-S winch on synthetic line, a pair of Baja Designs Squadron Sport amber lights wired to the factory fog circuit, and Baja Designs XL80 Racer Edition driving lights running through a Switch-Pros panel inside the cab.
The rear is set up as a hybrid platform with future flexibility built in. The Carli HD progressive leaf springs are rated to carry 60-70% of the camper's weight, and the Carli long-travel airbags carry the rest with adjustability for whatever load Justin's running. That same flexibility leaves the door open for a future flatbed conversion if he goes that direction. For now it lives under a Hawk — front dinette, king bed slide, both fans, Truma furnace and water heater, the full REDARC Manager 30 + Rogue power system on twin lithiums, and a REDARC pure sine inverter with built-in transfer switch we added at the shop. Clean, simple, and built to drive harder than it looks.
Build Sheet
The complete build — vehicle, suspension, armor, wheels, electrical, camper, and power.
The Vehicle
- 2026 Ford F-250 Super Duty Tremor · crew cab, short bed, 4WD
- 6.7L Power Stroke turbo diesel · 10-speed automatic
Engine
- Banks muffler-back exhaust · routes up and over the rear axle to clear the 38" spare in the factory hitch location, black tip
Suspension

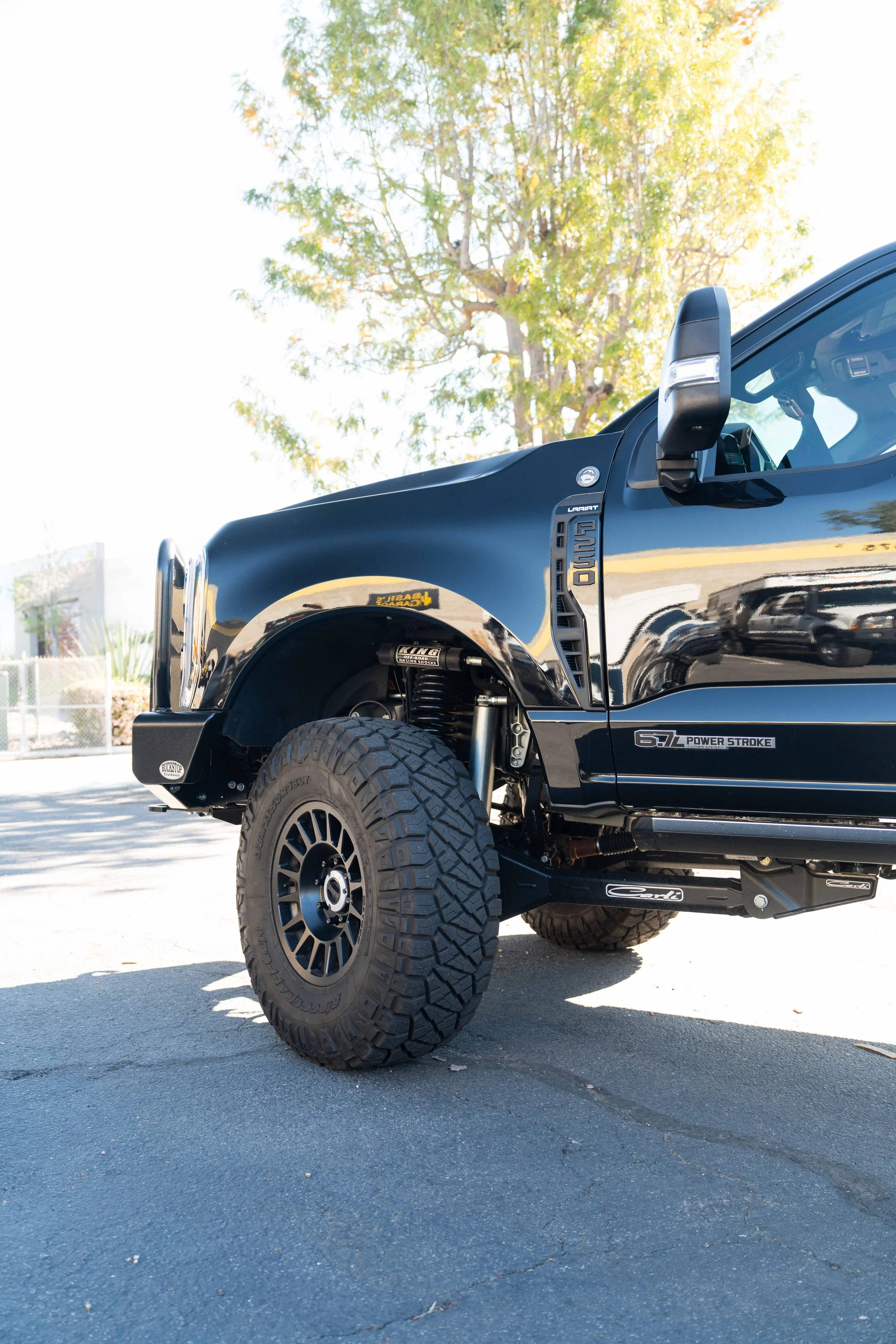

- Carli Dominator 3.0 5.5" lift system · Black Anodized with Finned Reservoirs
- Carli 3.0 King shocks · 3" body diameter, larger piston and fluid capacity than the standard Pintop
- Carli torsion sway bar
- Carli fabricated radius arms · with limit straps
- Carli HD +1000 lb progressive leaf springs · rated to carry 60-70% of camper weight
- Carli upgraded rear shackles
- Carli long-travel double-bellow airbags · 2,000 lb capacity, 4.0" axle, full suspension articulation
- Carli carrier bearing drop
- Shock protection film kit · Ford OEM forward leaf spring bolt
Steering
- Carli True Dual Steering Stabilizer · high + low mount
Wheels & Tires
- 38×13.5R18 Nitto Ridge Grappler R/T · Load Range E
- 18×9 Method 707 Bead Grip · Matte Black, 8×170
- Full-size 38" spare on a matching Method 707
Front End & Armor

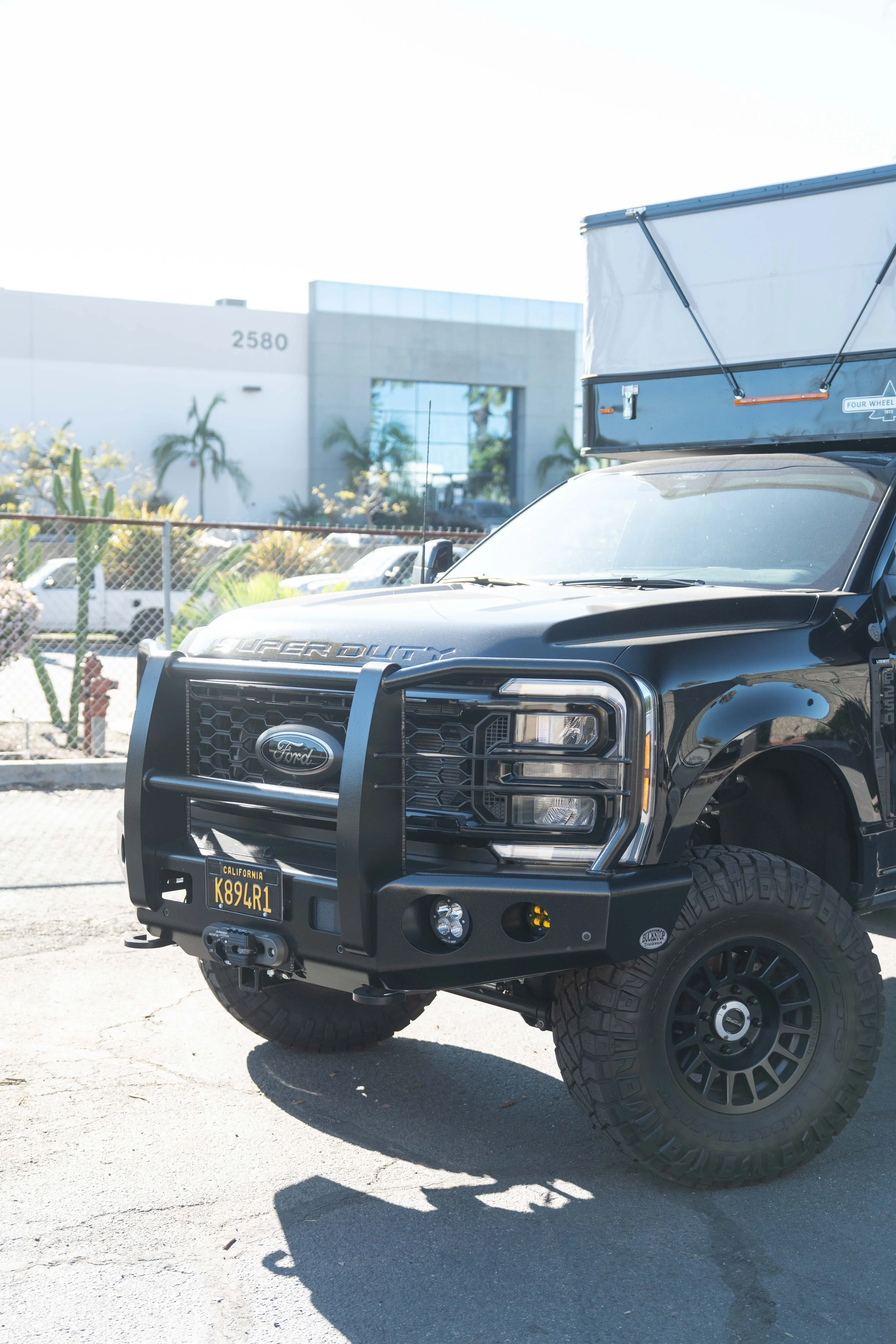

- Buckstop Outback front bumper · all factory sensors retained (parking, adaptive cruise, crash warning)
- Warn 16.5 TI-S winch · synthetic line and fairlead, sized at 1.5× vehicle weight
- 2× Baja Designs Squadron Sport Amber · in factory fog locations, wired to the factory fog circuit
- 2× Baja Designs XL80 Racer Edition · driving lights, switched through the Switch-Pros panel
- Carli Trophy Hitch · replacement rear hitch, fits a full 38" spare in the factory location, 16,000 lb tow rating retained
- Y-strap spare tire retainer · backs up the factory crank for off-road duty
Cab & Truck Electrical
- Switch-Pros accessory switching panel · programmable, app-controlled
- Wolf Box · digital rearview mirror, 2-camera version with front and rear feeds plus dash-cam recording
- Factory backup camera relocated for camper install · factory functionality retained
- Factory Aftermarket front camera relocation kit · routes around the winch box for full Buckstop bumper compatibility
- GME XRS Connect Outback Pack · GMRS radio with hidden brain unit, professional-grade speaker mic, medium-duty radome antenna mounted on the Buckstop bumper, RJ45 dash passthrough for clean disconnect
The Camper

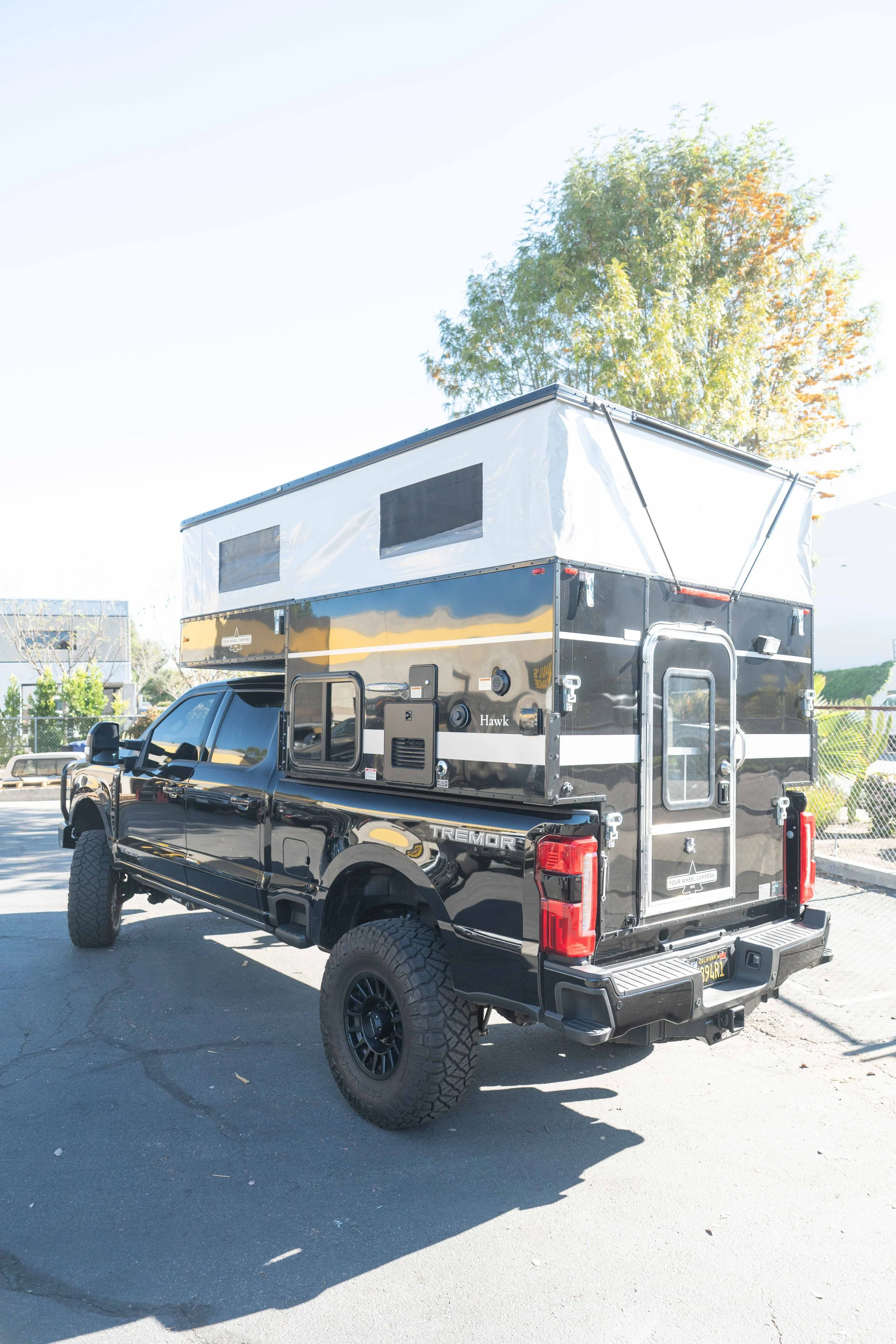

- Four Wheel Campers Hawk · slide-in, designed for crew cab short-bed 3/4-ton trucks
- Front dinette layout · with king bed slide and underbed storage
- Front and rear roof fans
- Truma forced-air furnace
- Truma on-demand water heater with outdoor shower (hot/cold)
- Flush-mount sink/stove · new deeper sink design
- Quilted thermal pack with full window covers
- 85L 2-way refrigerator/freezer
- Yakima roof tracks · rack-ready for a future install
- Mechanical jacks with extension plates · exterior LED lighting · rear wall steps
- Black coin flooring with carpet kit overlay
- Black Oxide cabinets · bamboo countertop · Heritage Saddle seat and bed fabric · Black Smooth siding
Camper Power System
- 2× FWC factory lithium batteries
- REDARC Manager 30 · 30A DC-DC + solar + shore charger with auto source selection
- REDARC Rogue · full data and control screen, with iOS/Android app mirroring
- REDARC 2000W pure sine inverter · with built-in transfer switch — bypasses the inverter on shore power so 110V outlets stay live while batteries charge
- 110V outlets, USB-C, USB, and 12V cigarette accessory outlets
- Switched factory FWC Starlink wall port
Water System
- 20-gallon freshwater tank · factory FWC, real-time float gauge on the Rogue screen
- Truma on-demand water heater · eco / comfort modes
- Outdoor shower · hot/cold
Connectivity
- PCI Starlink Mini Race Bracket · ultra-low-profile rooftop mount with magnetic feet and VHB landing pads, wired to the factory FWC Starlink port for switching from inside the camper
- Scanstrut horizontal cable seal · waterproof rooftop entry with quick disconnect
- Factory FWC Starlink wall port · retained for ground-deployment use
