OEV Hudson Bay 6.75’
Features:
- Pop-up roof
- 3 Season removable cabin
- Sleeps up to 4

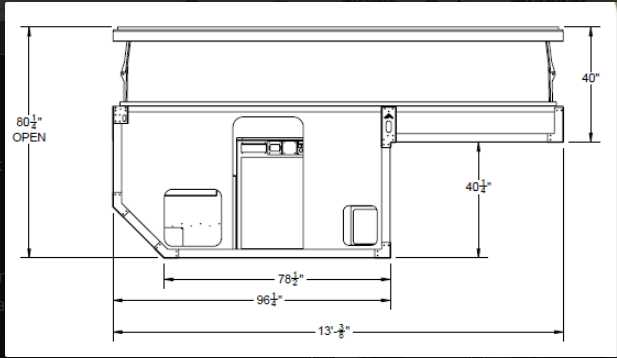

- External Dimensions:
- 156" L x 81" W x 58" H (closed)
- 80" H (open)
- Internal Dimensions:
- 153" L x 78" W x 55" H (closed)
- 77" H (open)
- Powder-coated aluminum extrusions
- OEV gen 4 composite floors, walls, and roof (<= R8)
- Fire-rated insulated soft walls (<= R4)
- Locking roof supports/hinges front and back
- DOT LED lighting
- Spec'd for a factory 3/4 & 1-ton North American trucks
- Dry weight: 1780 lbs (does not include jacks or batteries)
- OEV install kit includes (20) rubber feet to protect the camper and tray (prevents movement)
- Titan Jacks (4)
- Tork lift derringer tie-down latches (4)
- Wiring harness for truck
- Requires OEV Aluma Tray (purchased separately)
- Starting at $70,595.00
-





      • Aluminum storage closet with two adjustable shelves, lower battery tray (room for 4 group 31 batteries), 12V LED lighting, outside access via a cargo door • Inside shower under dinette table • (4) manual Reico Titan camper jack • o/c bed with queen size mattress • HBE graphics package • screen door • aluminum propane cabinet w/(1)-20lb marine horizontal propane • east/west dinette folds down into bed • marine fabrics • 4” medium density foam cushions • queen size 4” mattress • high traffic grade lonseal vinyl flooring • powder coated aluminum interior cabinetry • starboard door & drawer fronts • fire extinguisher • LP detector • smoke/CO detector
-



      - • 200W roof mounted solar panel
- • Victron Smart Solar mppt 100-30 solar controller
- •Victron Blue smart ip22 charger
- • Victron Orion tr smart 12-30 dc/dc charger
- • LED PS amber exterior side light
- • LED exterior DS/Rear light
- • LED interior lighting
- • usb type a&c
- • 164L DC Compressor fridge / freezer

-



      - Truma C3 Aquago hot water
- Truma C3 Vario heat w/thermostat
- Multi speed roof vent w/roller blind
- 38 gal fresh water tank w/12v pump and level gauge
- Sagiv inside & outside shower connection
- S/S sink w/flush mount glass top
- S/S cooktop w/flush mount glass top

-



      - Additional 200 W solar panel, includes mounting bracket
- Thetford 200866sp cartridge toilet
- OEV roof rack, custom powder coated (no steps)
- Additional multi speed fan
- Gurney style removable bunk above dinette, pins in place, stores under front bed
- king bed extension
- Under bed storage, 2.5″ high – 3 compartments, powder coated slotted aluminum with gas struts to assist lift
- 2000W Victron Multiplus Pure Sign inverter , also includes one gfi receptacle in the galley
- 3000W Victron Multiplus Pure Sign inverter , also includes one gfi receptacle in the galley, note-the 3000W is much bigger in size vs the 2000W
- OEV front off road light bar (lights not included)
- OEV awning brackets Alu Cab- 270, powder coated (3pc+hardware)
- OEV awning brackets universal powder coated (2pc+hardware)
- 12Vdc powered roof top nomadic cooling air conditioner – must have auto lift
- Auto roof lifting system, electric actuators (4) & hinges (4) -*FACTORY INSTALL ONLY* pic 1 pic 2
- OEV Fixed spare tire rack (max diameter 38″), installed, passenger side vertical only
- OEV Rear ladder for HBE-6.75, stacking & lockable
- OEV molle rear rack for HBE-6.75, passenger side, req’s ladder for mounting
- OEV molle rear rack for HBE-6.75, driver side , req’s ladder for mounting
- OEV combo package: includes (1) Passenger side fixed spare tire carrier,(1) ladder and (1) driver side molle rear rack
- OEV combo package: includes (1) DS molle rear rack, (1) Ladder and (1) PS molle rear rack
